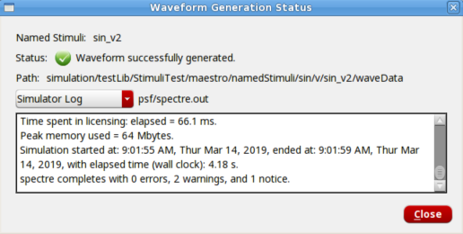

Ensure that the Authoring mode is On and Preview Transient Waveforms is set to Show in the Stimuli Authoring section. Then, click Wave Status at the bottom of the Stimuli Authoring section. This opens a message box, Waveform Generation Status. You can select one of the following options from the drop-down list: Simulator Log, Graphical Stimuli File, or Variables (ParamSet).
