Connecting with a Live Simulator

SimVision MS provides the ability to connect with the live simulators using a process ID. To do so:

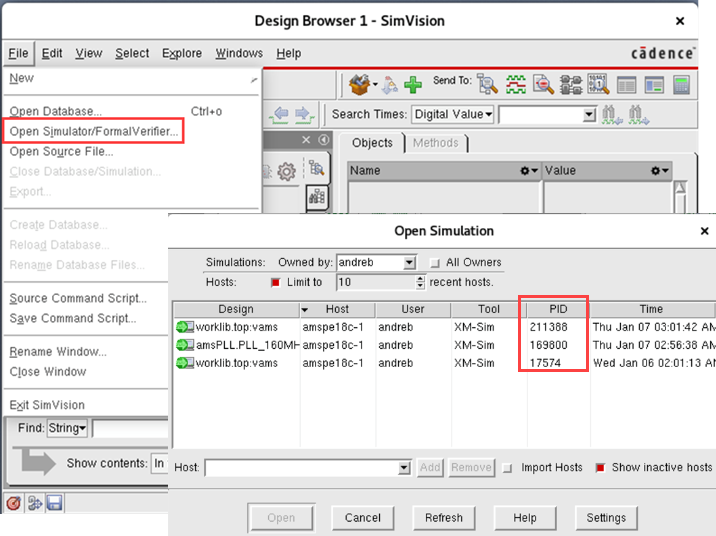

1. Select File - Open Simulator/FormalVerifier.
   The Open Simulation form is displayed.
2. Select the required process ID from the PID column and click Open.
   The selected process will be opened.
