Setting Formatting Options for Verilog-AMS Branches

To specify formatting options for Verilog-AMS branches, do the following:

1. From the Design Browser, choose Edit - Preferences.

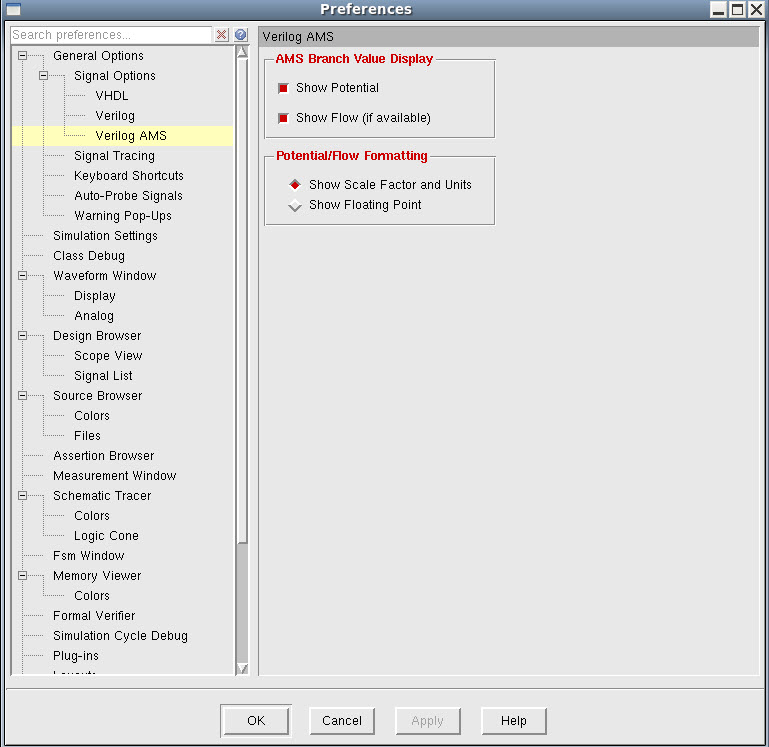

   The Preferences form appears.
2. Under General Options (on the left side of the form), select Signal Options - Verilog AMS.
   The Verilog AMS preferences appear on the right side of the form.


3. In the AMS Branch Value Display group box, select the options you want:

   Show Potential	Show potential quantities, such as 5.44V
   Show Flow	Show flow quantities, such as 3.45mA

4. In the Potential/Flow Formatting group box, select one of the following format options:

   Show Scale Factor and Units	Use scalar multipliers and nature units; for example: result= -30.646mV
   Show Floating Point	Use a floating-point format; for example: result= -0.0306461

5. Click Apply.
