Product Documentation
Analog Library Reference
Product Version IC23.1, August 2023

11


Interface Elements

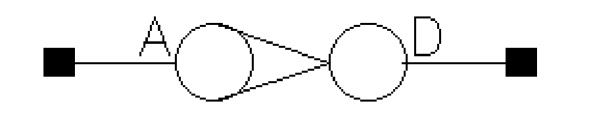

Symbol: MOS_a2d

Interface Element for MOS - Metal Oxide Semiconductor Analog to Digital Convertor

A general Interface Element (IE) for mixed signal. To match your design, you will need to change the Base CDF. The default is for 5V logic. Do not manually place this component in your schematic as the IE placement is done automatically by the mixed signal netlister.

Node Name

Input

A

Output

D

Command-line help

spectre -h a2d

CDF Parameters

CDF Parameter Label CDF Parameter spectre auCdl auLvs hspiceD UltraSim

Macro Name

macro

-

-

-

-

-

Level 0 threshold

a2d_v0

x

-

-

-

-

Level 1 threshold

a2d_v1

x

-

-

-

-

Time to x state

a2d_tx

x

-

-

-

-

Syntax/Synopsis

Name ( p n ) a2d <parameter=value>

Example

I0 a2d timex=1m v1=1.5 vh=3.5

Additional Information

This device is not supported within the altergroups.

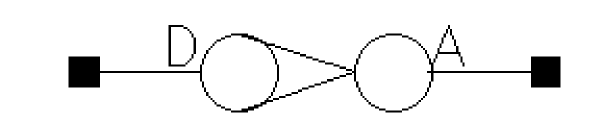

Symbol: MOS_d2a

Interface Element for MOS - Metal Oxide Semiconductor Digital to Analog Convertor

A general Interface Element (IE) for mixed signal. To match your design, you will need to change the Base CDF. The default is for 5V logic. Do not manually place this component in your schematic as the IE placement is done automatically by the mixed signal netlister.

Node Name

Input

D

Output

A

Command-line help

spectre -h d2a

CDF Parameters

CDF Parameter Label CDF Parameter spectre auCdl auLvs hspiceD UltraSim

Macro name

macro

-

-

-

-

-

Level 0 voltage

d2a_vl

x

-

-

-

-

Level 1 voltage

d2a_vh

x

-

-

-

-

Rise time

d2a_tr

x

-

-

-

-

Fall time

d2a_tf

x

-

-

-

-

Level X voltage

d2a_vx

x

-

-

-

-

Level Z voltage

d2a_vz

x

-

-

-

-

Syntax/Synopsis

Name ( p n ) d2a <parameter=value> ...

Example

I1 d2a fall=2n rise=3n val1=5 val0=0 valx=1.25

Additional Information

This device is not supported within the altergroups.

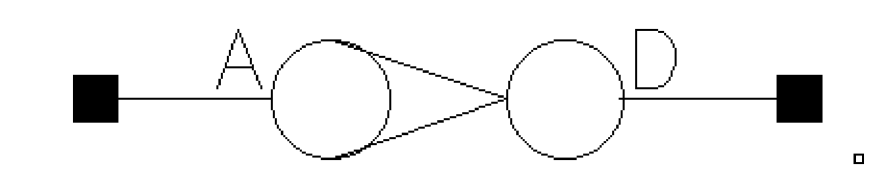

Symbol: TTL_a2d

Interface Element for TTL - Transistor to Transistor Logic Analog to Digital Convertor

An Interface Element (IE) for TTL that is used as an analog-to-digital interface for mixed-signal simulations. The analog-to-logic converter transfers analog waveforms to a logic simulator.

Command-line help

spectre -h a2d

CDF Parameters

CDF Parameter Label CDF Parameter spectre auCdl auLvs hspiceD UltraSim

Macro Name

macro

x

-

-

-

-

Level 0 threshold

a2d_v0

x

-

-

-

-

Level 1 threshold

a2d_v1

x

-

-

-

-

Time to x state

a2d_tx

x

-

-

-

-

Syntax/Synopsis

Example

I3 interfaceElement timex=1m v1=1.5 vh=3.5

Additional Information

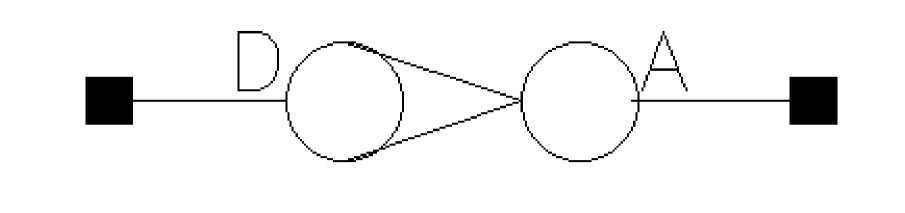

Symbol: TTL_d2a

Interface Element for TTL - Transistor to Transistor Digital to Logic Analog Convertor

An Interface Element (IE) for TTL that is used as a digital-to-analog interface for mixed-signal simulations.

Command-line help

spectre -h d2a

CDF Parameters

CDF Parameter Label CDF Parameter spectre auCdl auLvs hspiceD UltraSim

Macro Name

macro

x

-

-

-

-

Level 0 voltage

d2a_vl

x

-

-

-

-

Level 1 voltage

d2a_vh

x

-

-

-

-

Rise time

d2a_tr

x

-

-

-

-

Fall time

d2a_tf

x

-

-

-

-

Level X voltage

d2a_vx

x

-

-

-

-

Level Z voltage

d2a_vz

x

-

-

-

-

Example

I3 interfaceElement fall=2n rise=3n val1=5 val0=0
