minGateExtension
orderedSpacings(
( minGateExtension tx_layer1 tx_layer2
'distance f_distance
'length f_length
f_extension
)
) ;orderedSpacings

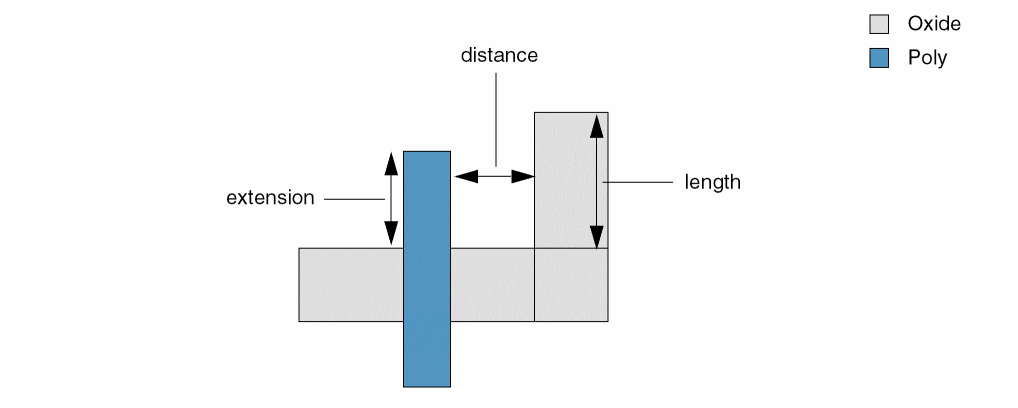

Specifies the minimum poly extension for a gate when an L-shaped oxide shape is at a distance less than or equal to distance from the poly shape. The constraint applies only if the length of the jog is greater than length.
Values
|
tx_layer1
|
The poly layer on which the constraint is applied.
Type: String (layer and purpose names) or Integer (layer number)
|
|
tx_layer2
|
The oxide layer on which the constraint is applied.
Type: String (layer and purpose names) or Integer (layer number)
|
|
f_extension
|
The extension of a poly shape past an oxide shape must be greater than or equal to this value.
|
Parameters
|
'distance f_distance
|
|
|
The constraint applies only if the distance between the poly shape and the L-shaped jog is less than this value.
|
|
'length f_length
|
|
|
The constraint applies only if the length of the L-shaped jog is greater than this value.
|
