minWireExtension
spacings(
( minWireExtension tx_layer
{f_extension | (f_distance f_extension)}
['coincidentAllowed]
)
) ;spacings
Specifies the minimum extension of a wire on layer past the center of a via cut that can be on a cut layer above or below layer.
Values
|
tx_layer
|
The layer on which the constraint is applied.
Type: String (layer and purpose names) or Integer (layer number)
|
|
f_extension
|
The distance from the center of the via cut to the edge of the enclosing wire must be greater than or equal to this value.
|
Parameters
|
f_distance
|
|
|

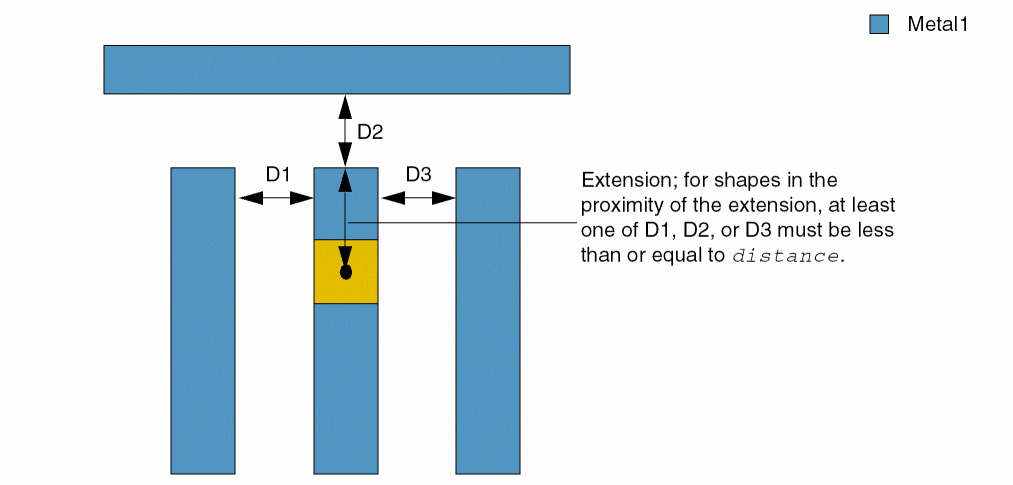

The constraint applies only if the distance between the extension and a shape in the proximity of the extension on the same layer is less than or equal to this value.
|
|
'coincidentAllowed
|
The edges of the via cut can coincide with the edges of the enclosing wire. Otherwise, the extension requirement must be met.
Type: Boolean
|
Example
The distance a Metal3 wire must extend past the center of a via cut on the cut layer above or below Metal3 must be greater than or equal to 1.5.
spacings(
( minWireExtension "Metal3"
1.5
)
) ;spacings
