maxNumMinEdges

spacings(
( maxNumMinEdges tx_layer {x_numEdges | (f_length x_numEdges)} )

) ;spacings

Sets the maximum number of consecutive small edges permitted in a step.

tx_layer

The layer on which the constraint is applied.

Type: String (layer and purpose names) or Integer (layer number)

x_numEdges

The number of consecutive small edges in a step must be less than or equal to this value.

f_length

The length of an edge in a set of consecutive small edges must be less than this value for it to be counted.

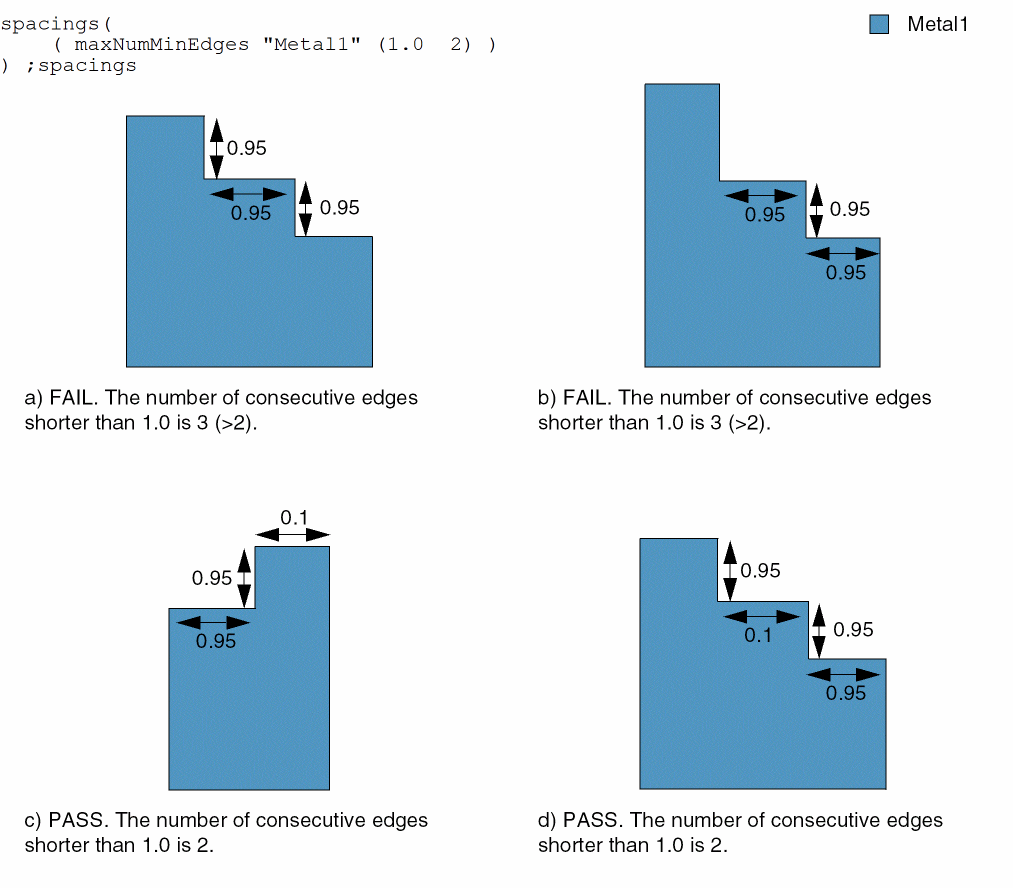

The maximum number of consecutive edges shorter than 1.0 must be 2.
