protrusionWidth

spacings(
( protrusionWidth tx_layer
 ( f_protrusionLength f_wireWidth f_protrusionWidth )
)

) ;spacings

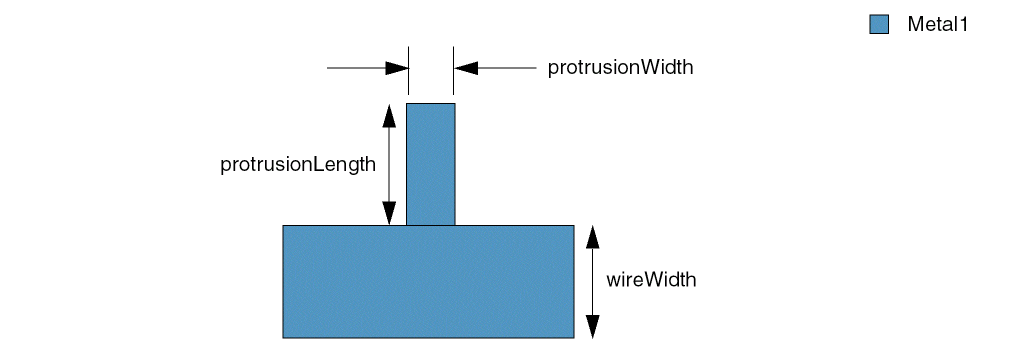

Specifies the minimum width for a protrusion that connects to a wire. The width of the protrusion depends on the length of the protrusion and the width of the wire to which it connects.

Values

tx_layer	The layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
f_protrusionLength
	The constraint applies only if the length of the protrusion is less than this value.
f_wireWidth	The constraint applies only if the width of the wire to which the protrusion connects is greater than or equal to this value.
f_protrusionWidth	The width of the protrusion must be greater than or equal to this value.

Parameters

None

Example

On Metal3, the width of a protrusion must be greater than or equal to 0.25 if the length of the protrusion is less than 1.5 and the width of the wire to which this protrusion connects is greater than or equal to 0.5.

spacings(
    ( protrusionWidth "Metal3" (1.5 0.5 0.25) )
) ;spacings
