horizontalOffset

routingGrids(
( horizontalOffset [tx_layer] f_offset )
…

) ;routingGrids

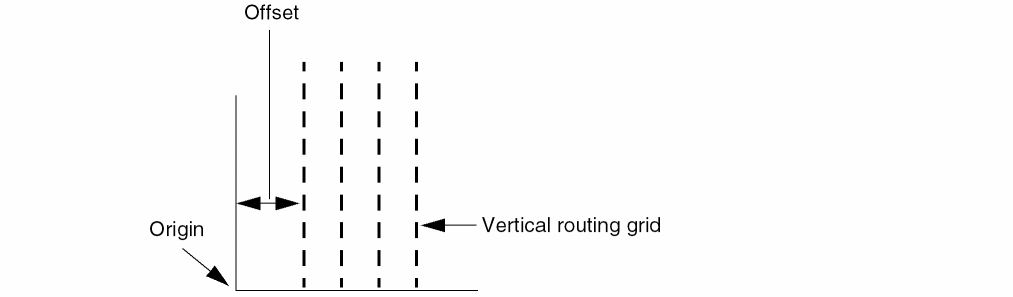

Sets the offset from the origin for the start of the vertical routing grid. A horizontal offset specified with a layer applies only to that layer. When specified without a layer, it sets the default for all layers not explicitly assigned a horizontal offset.

Values

tx_layer	The layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
f_offset	The offset from the origin for the vertical routing grid. The default value is 0.

Parameters

None

Example

The horizontal offset must be 1.2 for Metal3 and 1.5 for the rest of the layers.

routingGrids(
    ( horizontalOffset "Metal3" 1.2 )
    ( horizontalOffset 1.5 )
) ;routingGrids
