ladderStyle
spacings(
( ladderStyle
['sameLayerLadder | 'layerAboveLadder | 'layerBelowLadder]
{"noLadderStyle" | "atTurnOnly" | "allSegments"}
)
) ;spacings

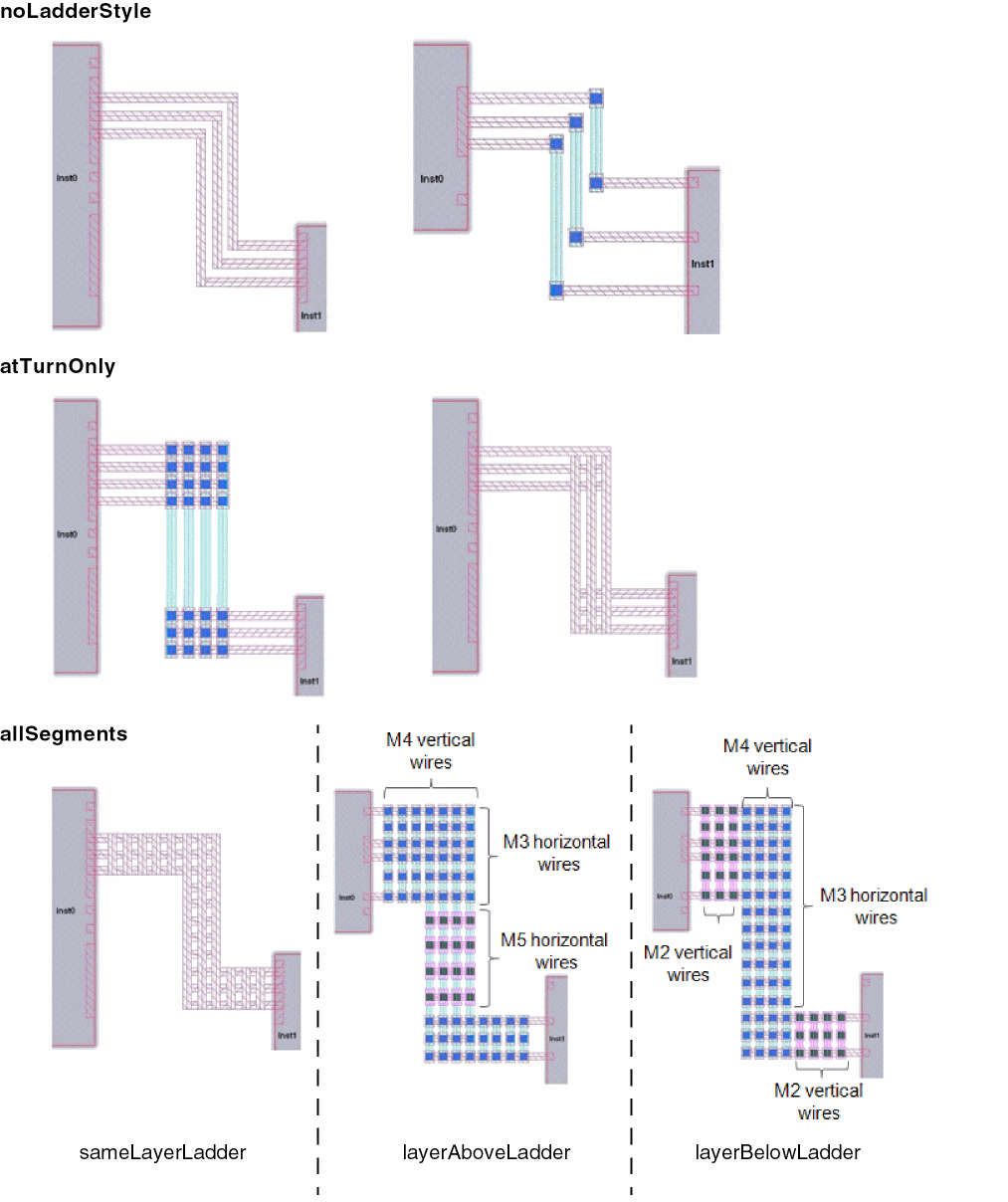

Specifies the laddering style for strand routing.
Values
|
"noLadderStyle" | "atTurnOnly" | "allSegments"
|
|
|
The ladder style.
-
noLadderStyle: No additional perpendicular wires are added to the wire strands. -
atTurnOnly: Additional perpendicular wires are added only at a turn, if there exists one. -
allSegments: Additional perpendicular wires are added to entire wires.
|
Parameters
|
'sameLayerLadder | 'layerAboveLadder | 'layerBelowLadder
|
|
|
The layer to be used for laddering.
-
'sameLayerLadder: The wire strands and the associated perpendicular wires are on the same layer. -
'layerAboveLadder: The associated perpendicular wires are on the layer above the wire strands. -
'layerBelowLadder: The associated perpendicular wires are on the layer below the wire strands.
|
