leftDiagPitch

routingGrids(
( leftDiagPitch [ tx_layer ] f_pitch )
…

) ;routingGrids

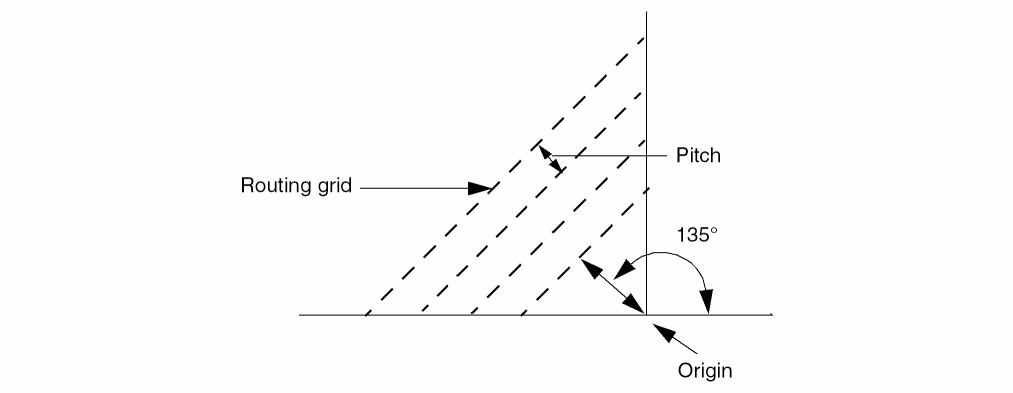

Specifies the left diagonal pitch (distance) between the routing tracks on the specified layer. If layer is not specified, the constraint sets the default pitch for all layers for which a left diagonal pitch is not explicitly assigned.

Values

tx_layer	The layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
f_pitch	The spacing between the routing grid lines.

Parameters

None

Example

The left diagonal pitch must be 1.0 for Metal3 and 0.8 for the rest of the layers.

routingGrids(
    ( leftDiagPitch "Metal3" 1.0 )
    ( leftDiagPitch 0.8 )
) ;routingGrids
