maxTapSpacing

spacings(
( maxTapSpacing tx_layer
 f_spacing
)

) ;spacings

Specifies the maximum center-to-center spacing between two well ties (taps) inside a well on the specified layer. This constraint applies to cut or local interconnect layers.

Values

tx_layer	The layer on which the constraint is applied. The layer must be a cut or local interconnect layer. Type: String (layer and purpose names) or Integer (layer number)
f_spacing	The center-to-center spacing between well ties must be less than or equal to this value.

Parameters

None

Example

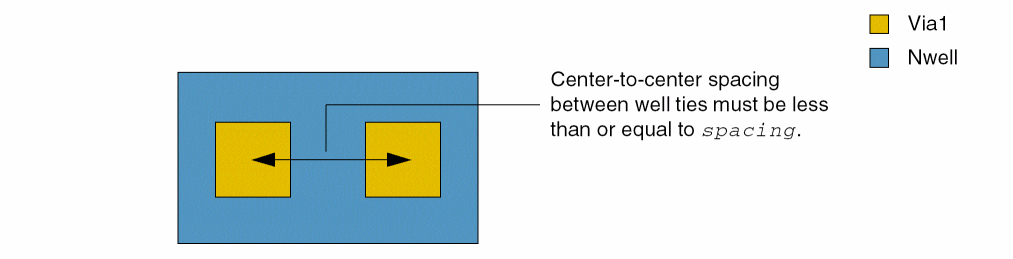

The center-to-center spacing between two well ties inside a well on layer Nwell must be less than or equal to 1.5.

spacings(
    ( maxTapSpacing "Nwell"
     1.5
 )
) ;spacings
