minInnerVertexSpacing (Three layers)

orderedSpacings(
( minInnerVertexSpacing tx_layer1 tx_layer2 tx_layer3
 f_spacing
)

) ;orderedSpacings

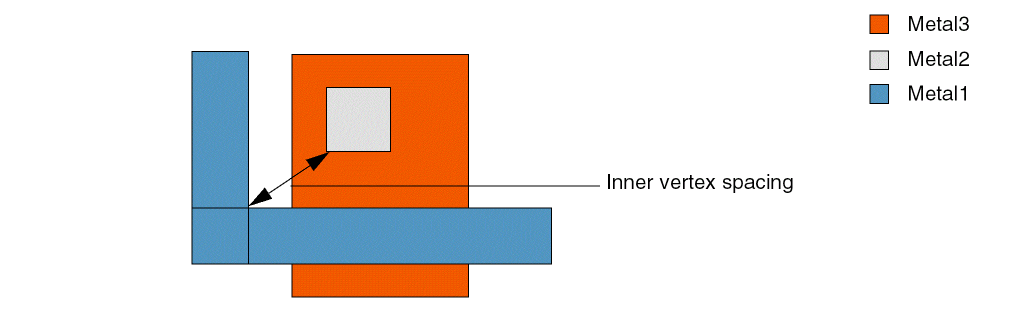

Specifies minimum spacing between a contact shape on layer2 and an inner vertex of a layer1 shape, provided both layer1 and layer2 shapes overlap the same layer3 shape.

Values

tx_layer1	The first layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
tx_layer2	The second layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
tx_layer3	The third layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
f_spacing	The spacing must be greater than or equal to this value.

Parameters

None

Example

The spacing between an inner vertex on Poly and a contact on Cont must be at least 0.4 if both Poly and Cont shapes overlap the same Diff shape.

orderedSpacings(
    ( minInnerVertexSpacing "Poly" "Cont" "Diff"
     0.4
 )
) ;orderedSpacings
