Modes for Launching CLIPS

A CLIPS session can be launched in the following modes:

• GUI mode: You can use the command clips & to launch CLIPS in GUI mode.

  Ensure that the path for Xcelium 17.10 or above is set and added to the PATH environment variable.

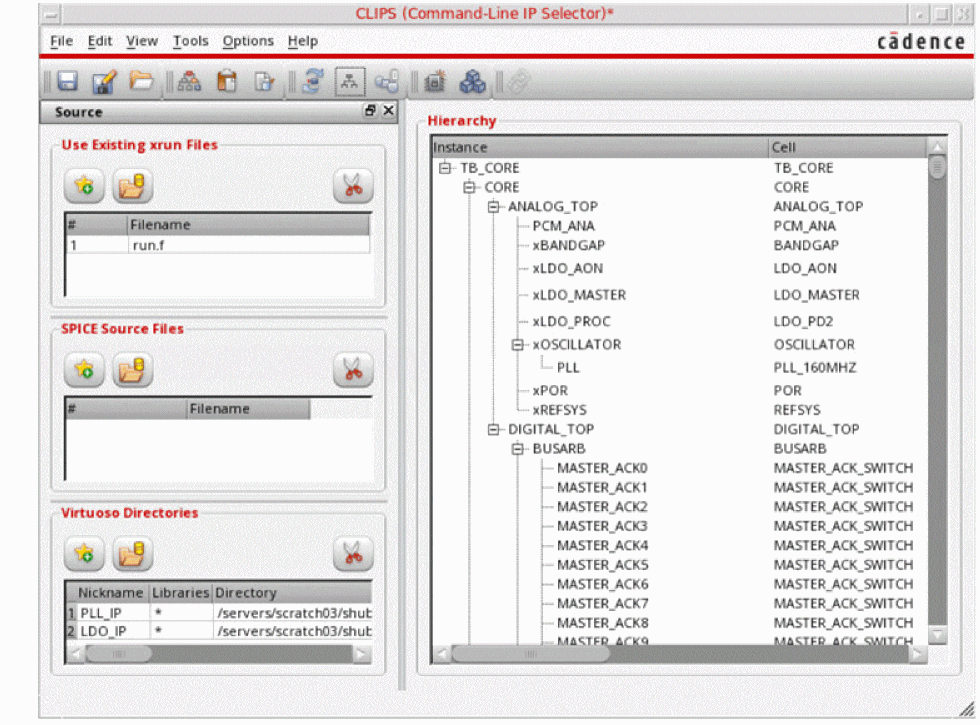

  The CLIPS window is displayed.


• Command-line mode: You can use the command clips <optional command-line arguments> to launch CLIPS in command-line mode.
  A few examples are given below.

  clips -load myTextPll.clips

  clips -dirs ../PLL_IP -xrun xrunArgs &

  clips -load myTextPll.clips -batch -log myBatchRun.log

  clips -dirs ../PLL_IP -xrun xrunArgs -switch "inst=testbench.IP0.I11.I14 config=PLL_IP::amsPLL/dffnr_2x_hv/config ade=PLL_IP::amsPLL/pll_top/maestro:pll_top:1" -switch "inst=testbench.IP0.I11.I13 config=PLL_IP::amsPLL/nor2_2x_nv/config ade=PLL_IP::amsPLL/pll_top/ams_state" -batch

  clips -export "config=amsPLL/dffnr_2x_hv/config ade=PLL_IP::amsPLL/pll_top/ams_state outdir=clips_export_dffnr cdsdir=../test/IP_dir" -batch

  The command-line arguments can be saved in a text file and used while launching CLIPS with the help of the following command:

  clips -f <command-line arguments file>
