Viewing the Netlist Output

By default, all switched config or schematic views are netlisted in the ./CLIPSOUTPUT directory.

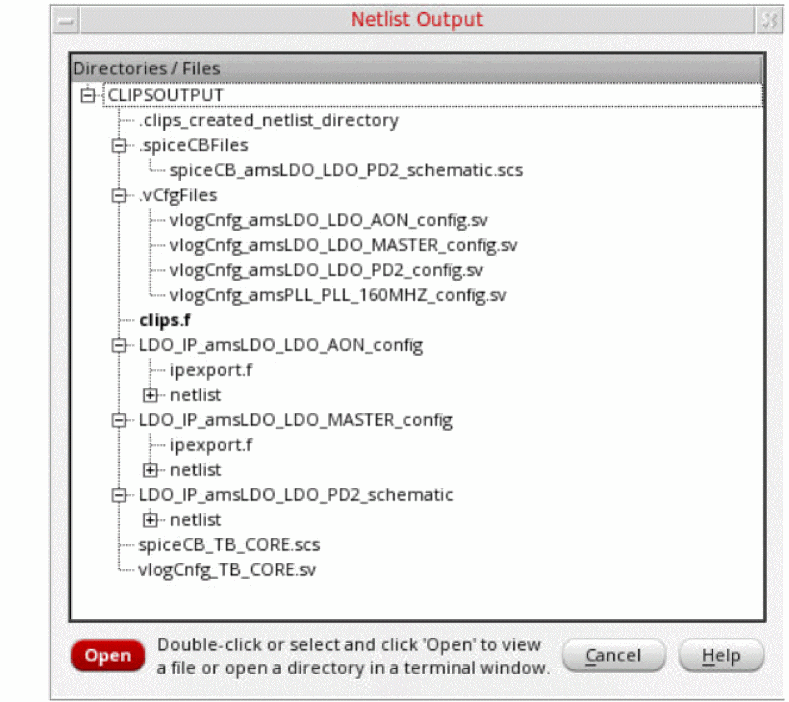

1. To view the contents of this directory, click the View Output command on the toolbar. The directory structure is displayed in the Netlist Output window, as shown below.


2. To view the contents of the files displayed in the above window, double-click the file, or select the file and click Open.
3. To open the terminal in a directory, double-click the directory, or select the directory and click Open.
   To set your own output directory, perform the following steps.
   1. Choose Edit—Netlist Output Directory
      The Select Directory to Create Netlist Directory form is displayed.
   2. In this form, select a directory and click Choose.
4. To view the list of contents of this directory on the command line, enter the following command in the terminal:


   % ls ./CLIPSOUTPUT/
