Creating S-Parameter Cellviews for Models

In addition to saving S-Parameters as extracted views, you can save them as S-parameter cellviews along with their symbols that can be instantiated in a schematic cellview.

To save a model as an S-parameter cellview:

1. After the simulation for the model is complete, refresh its status.
   The value in the Status column for the model is shown as done.
2. Right-click the row for the model and choose Export to S-Parameter View.

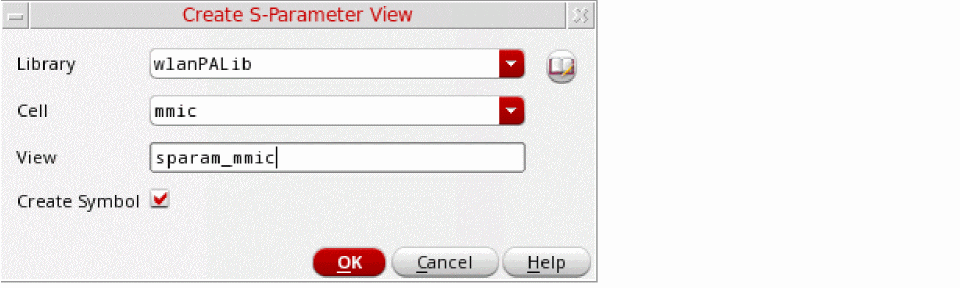

   The Create S-Parameter View form is displayed with a default name to be used for the new S-parameter view to be saved in the current library and cell. However, you can customize the Library, Cell, and View names.


3. (Optional) Click the button to the right of the Library drop-down list to open the Library Browser form and choose another library or cell.
4. (Optional) Change the name of the view.
5. Click OK.
   A new S-parameter view and a symbol view is saved in the specified library and cell.
