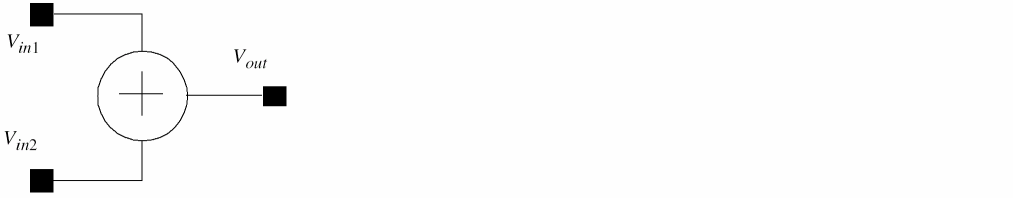

Adder Symbol

The following table summarizes the details of this symbol.

Description

Output voltage is the sum of the two input voltages.
Library name

adder
Transfer function

Properties (Defaults)

None
Input impedance

Infinite
Output impedance

Zero
Frequency response

Flat
