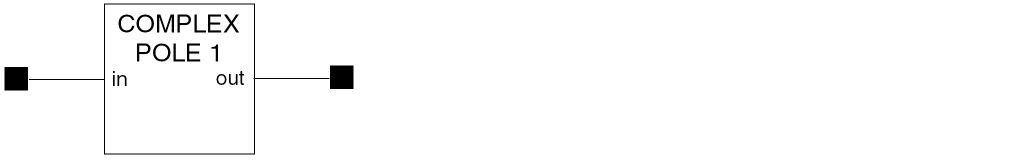

Complex Pole 1 Symbol

The following table summarizes the details of this symbol.

Description	Complex-pole transfer function, using σ and ω_n. σ is the (exponential) damping coefficient. ω_n is the damped natural frequency, in radians. For left-hand half-plane poles, enter negative values for σ.
Library name	`complexPole`
Transfer function
Properties (Defaults)	σ (-5) ω_n (6283.1853)
Input impedance	Infinite
Output impedance	Zero
Frequency response	Function of σ and ω_n.
