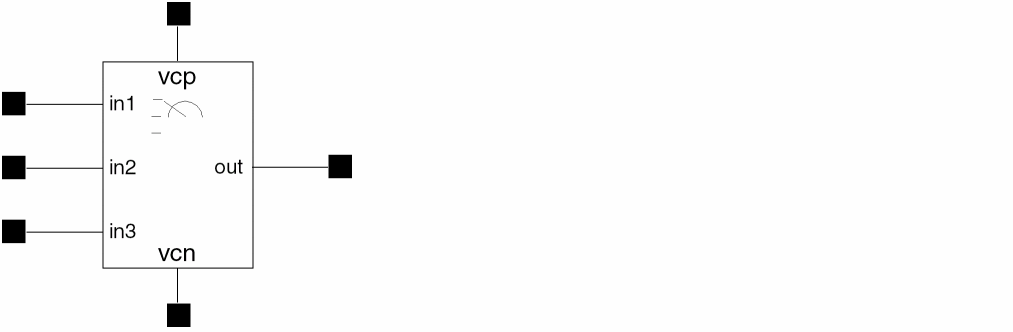

Multiplexer Symbol

The following table summarizes the details of this symbol.

Description	3-to-1 analog selector This multiplexer is a voltage-controlled switch, not a programmable analog selector.
Library name	`multiplexer`
Transfer function	If Vc < threshold1 then Vout = Vin1 If threshold1 ≤ Vc ≤ threshold2 then Vout = Vin2 If Vc > threshold2 then Vout = Vin3 Vc = vcp - vcn
Properties (Defaults)	threshold₁ (-1) threshold₂ (1)
Input impedance	Infinite
Output impedance	Zero
Frequency response	Flat
