asiSetEMIROptionVal

asiSetEMIROptionVal(
o_session
s_name
g_value
)
=> t / nil

Sets the given value for the specified EMIR option.

o_session	Simulation session object
s_name	Name of the EMIR option to which you want to assign a value.
g_value	The value to be set for the specified EMIR option.

`t`	Successful operation
`nil`	Returns `nil`, along with an error message if the option does not exist.

Sets the specified QRC technology file in the qrcTechFile field of the EMIR Analysis Setup form.

session = asiGetCurrentSession()
=> stdobj@0x30dd91b8

asiSetEMIROptionVal(stdobj@0x30dd91b8 'qrcTechFile "techfile.txt")
=> t

Modifies the customized options table in the Summary tab of the EMIR Analysis Setup form.

asiSetEMIROptionVal(asiGetCurrentSession() 'customizedOptionsListBox list(

list(t "net" "name=[*] analysis=[vmax vavg iavg irms iacpeak]")

list(t "net" "name=[*] analysis=[sigvavg] reftype=[avg] findsrc=[true]")

list(t "net" "name=[*] analysis=[sigvmax] reftype=[max] findsrc=[true]")

list(t "net" "name=[*] analysis=[ipwc]")

list(t "emirutil" "autorun=[true] report=[text]")

list(t "emirutil" "dynamicACPeak=[multiplePeak]")

list(t "emirutil" "enableSHHeatSink=[true]")

list(t "emirutil" "res_pdata_sw=on")

list(t "emirutil" "extendHeatSinkRange=[0.4]")

list(t "emirutil" "connectingODLayers=[\"MD_OD MD_OD_N MD_OD_P MD_STI MD_OD_N_SRM MD_OD_P_SRM MD_STI_SRM VDR M0\"]")

list(t "emirutil" "technology=\"tsmcN3Generic\"")

list(t "emirutil" "extendedreport=[true]")

list(t "emirutil" "idirn=[true]")

list(t "net" "design_res_models=[name=rhim l=lr w=wr unit=1] analysis=[iacpeak iavgabs irms imax iavg ipwc vmax vavg]")

list(t "emirutil" "deltaTLayers=[(layer=rhim hi_em=1 deltaT=25)]")

list(t "emirutil" "auto_detect_geounit=[false]")

list(t "emirutil" "disableODSH=[false]")

list(t "emirutil" "disableHRSH=[false]")

list(t "emirutil" "extendedRMSReport=[true]")

list(t "emirutil" "shXMLFile=../netlist/input.tmideg0.xml")

list(t "emirutil" "sebMode=1")

list(t "emirutil" "sebParamFile=/projects/analog/bin/template/SHE/N3E_2P02M_SEB.ircx")

list(t "emirutil" "print_em_report=[net=all_nets type=fit filename=fit.rpt]")

list(t "emirutil" "Tambient=105")

list(t "emirutil" "deltaT=5")

list(t "emirutil" "extendMetalRange=0.0")

list(t "emirutil" "extendHRRange=0.5")

list(t "emirutil" "extendODRange=1.8")

list(t "<Click_To_Add>" "")

))
=> t

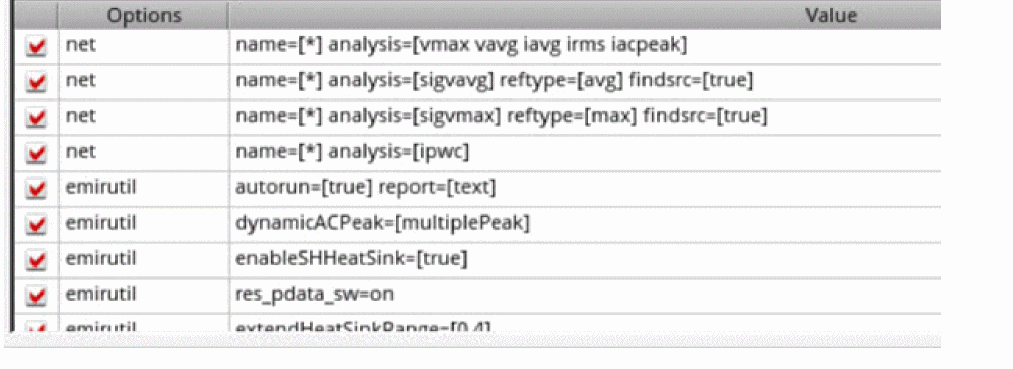

The Summary Information table gets updated as follows.
