Definition

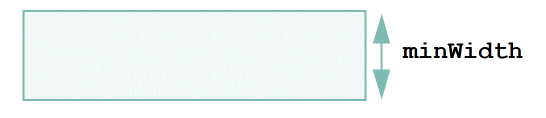

Specifies the minimum orthogonal width of shapes on the specified layers.

The minimum width constraint does not apply in the following situations:

• Two shapes touch at a point, as shown in the following figure:


• Two shapes abut for a sufficient overlap, as shown in the following figure:



Values

• l_layerNames
  Specifies the layers to which the constraint must be applied.
  Type: String (layer name), list of strings (layer and purpose names), or integers (layer numbers)
• x_minWidth
  The minimum permissible orthogonal width of shapes.
  Type: Integer

Parameters

None

Applies To

• Trunk constraints
• Twig constraints
• Strap constraints
