Checking that Snapshot is Generated by Up-to-Date DK Version

If DK team wants to make sure that their users use snapshot generated by latest DK versions then they can create a SKILL code which checks validity of snapshot based on PegasusIntValidateSnapshot SKILL function and then define how to proceed further: either allow to use with warning or hide snapshot.

General assumption is that the customer implements procedure of fixed name and list and order of arguments.

1. If PegasusIntValidateSnapshot(snp_name snp_dir snp_comment) returns:
   1. t
      i. Snapshot name will show up on Pegasus Interactive Toolbar
      ii. There will be no message in CIW
   2. nil
      i. Snapshot name will not show up on Pegasus Interactive Toolbar
      ii. Following warning message will be shown in CIW:

      Pegasus Interactive: snapshot <snp_name> located in <snp_dir> didn't pass validation against comment <snp_comment>

   3. Non empty error_message (string)
      i. Snapshot name will not show up on Pegasus Interactive Toolbar
      ii. Following warning message will be shown in CIW:

      "Pegasus Interactive: <error_message>"

   4. Empty error_message (string)
      i. Snapshot name will not show up on Pegasus Interactive Toolbar
      ii. There will be no message in CIW
   5. Anything else (list, symbol, and so on …) will be treated as nil like point # b above
2. This procedure must be loaded before first layout cell is opened (this is when the SKILL context is loaded and snapshot validation is run on init).
   Examples (called from .cdsinit):
   Allowing snapshots located only in a specific directories:

procedure( PegasusIntValidateSnapshot( snp_name snp_dir snp_comment)

let((project_dir valid)

 project_dir = getShellEnvVar("Pegasus_N7_DIR")

 if( project_dir && simplifyFilename(project_dir) == simplifyFilename(snp_dir)

 then

valid = t

 else

valid = sprintf(nil "Refusing snapshot %s from %s. Only snapshots from %s directory are enabled." snp_name snp_dir project_dir)

    );if

 valid

);let

);procedure

Allowing snapshots based on processing its comment line:

procedure( PegasusIntValidateSnapshot( snp_name snp_dir snp_comment)

let(()

rexMatchp( " N[5-7]" snp_comment)

);let

);procedure

Example

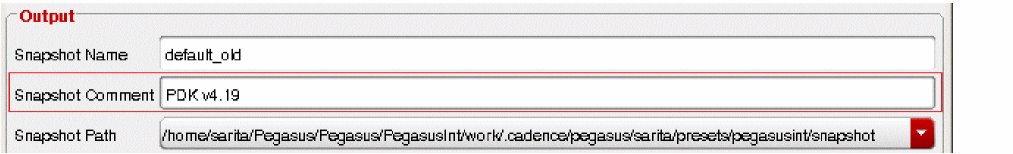

1. Create snapshot and add comment:

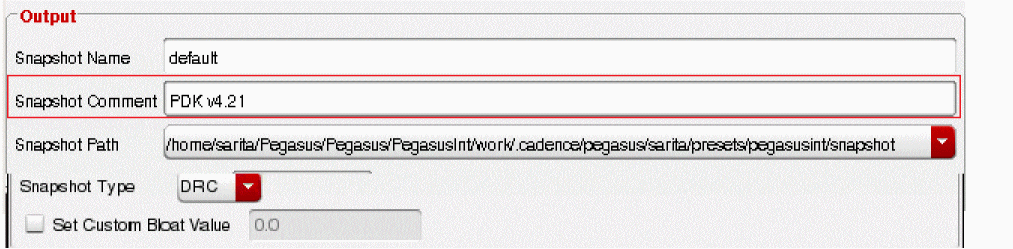

2. Create another snapshot and add comment:


3. Create SKILL and load it at Virtuoso start:

;; if SNP comment does not match PDK v.4.21 then snp will not be shown in the list, ;;warning will be issued.

procedure( PegasusIntValidateSnapshot( snp_name snp_dir snp_comment)

let(()

rexMatchp( "PDK v.4.21" snp_comment)

   );let

);procedure

1. Open layout window. Just default snapshot is available. default_old is hidden. Warning is issued to CIW.
