Donut Attributes

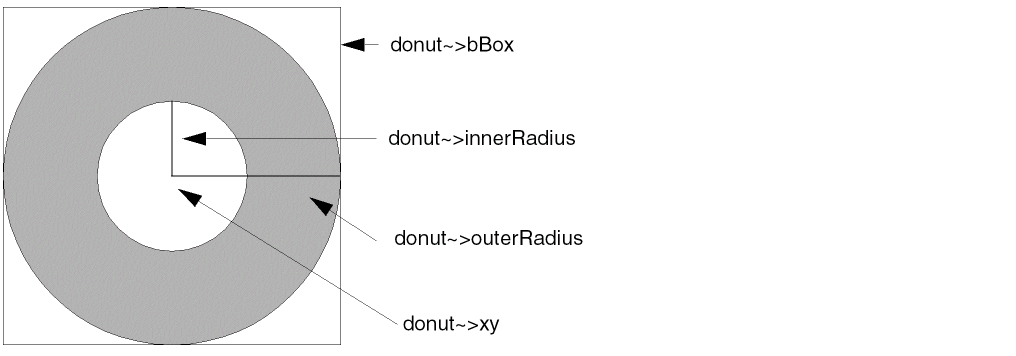

A donut is circular and is modeled using two square bounding boxes; the outer bounding box defines the outer ellipse and the inner bounding box defines the donut hole.

Attribute Modify Type Description
include Generic Shape Attributes.

innerRadius

yes

float

Distance in user units from the donut’s center to the inner circle.

outerRadius

yes

float

Distance in user units from the donut’s center to the outer circle (must be greater than innerRadius).

xy

yes

float

Point describing donut’s center (in user units).

Related Topics

Generic Shape Attributes
