dbCreateArc

dbCreateArc(
d_cellView
txl_layerPurpose
l_ellipse_bBox
l_arc_bBox
)
=> d_arc / nil

Description

Creates an arc.

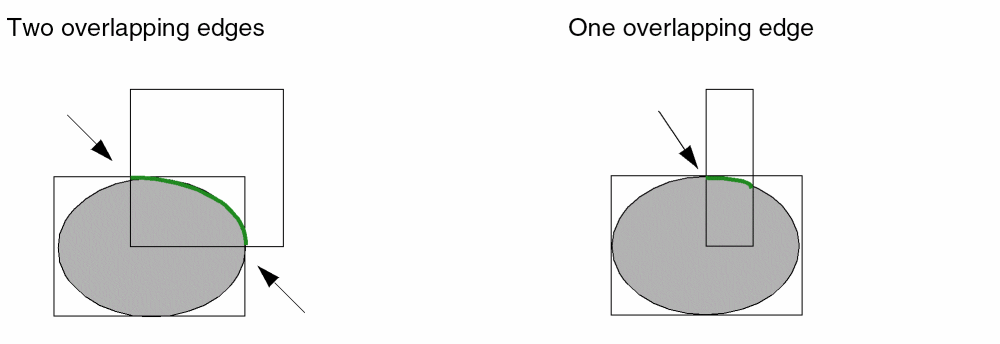

The arc is determined by calculating the overlap or the interception between the ellipse and arc bBox given by the caller. In order to correctly determine the intersection of the given bBoxes, overlapping edges between the bBoxes are required.

Arguments

d_cellView	Database ID of a cellview.
txl_layerPurpose	Name, number, or a list of layer or layer-purpose pair.
l_ellipse_bBox	Bounding box of the ellipse containing the arc.
l_arc_bBox	Bounding box of the arc.

Value Returned

d_arc	The dbObject of the arc.
nil	The arc is not created.

Examples

dbCreateArc(cv list("background" "drawing") list(0:0 2:2) list(1:1 2:2))
