phoDrawBendConnectorSymbol
phoDrawBendConnectorSymbol(
d_cellViewId
n_magnification
?startPortName s_PortName
?startPortDirection s_direction
?endPortName s_PortName
?endPortDirection s_direction
)
=> t / nil
Description

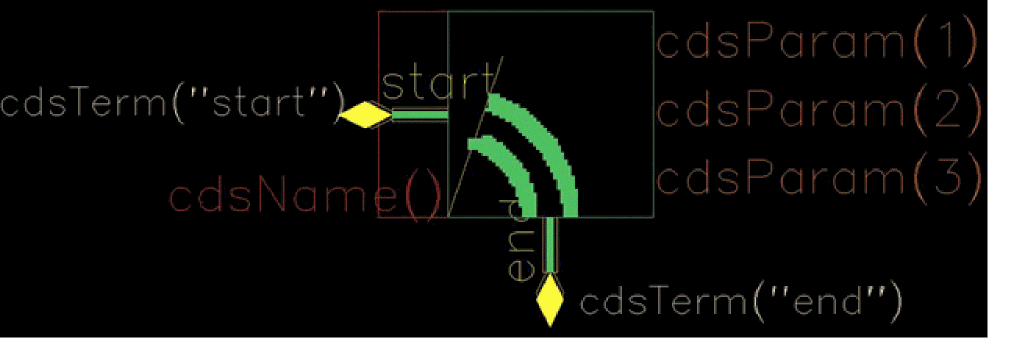

(Virtuoso Photonics Option) Draws a bend connector symbol.
Arguments
|
d_cellViewId
|
Database ID of a cellview.
|
|
n_magnification
|
Database magnification value to set on the instance.
Default: 1.0
|
|
?startPortName s_PortName
|
|
|
Name of the start port. The default is "start".
|
|
?startPortDirection s_direction
|
|
|
Direction of the start port. The default is "inputOutput".
|
|
?endPortName s_PortName
|
|
|
Name of the end port. The default is "end".
|
|
?endPortDirection s_direction
|
|
|
Direction of the end port. The default is "inputOutput".
|
Return Value
|
t
|
Symbol for the bend connector is generated.
|
|
nil
|
Symbol is not generated.
|
Example
cv = geGetEditCellView()
phoDrawBendConnectorSymbol(cv 1.0)
