phoDrawCrossBBSymbol
phoDrawCrossBBSymbol(
d_cellViewId
n_magnification
?northPortName s_PortName
?northPortDirection s_direction
?southPortName s_PortName
?southPortDirection s_direction
?eastPortName s_PortName
?eastPortDirection s_direction
?westPortName s_PortName
?westPortDirection s_direction
)
=> t / nil
Description
(Virtuoso Photonics Option) Draws a cross building block symbol.
Arguments
|
d_cellViewId
|
Database ID of a cellview.
|
|
n_magnification
|
Database magnification value to set on the instance.
Default: 1.0
|
|
?northPortName s_PortName
|
|
|
Name of the north port. The default is "opt0".
|
|
?northPortDirection s_direction
|
|
|
Direction of the north port. The default is "inputOutput".
|
|
?southPortName s_PortName
|
|
|
Name of the south port. The default is "opt2".
|
|
?southPortDirection s_direction
|
|
|
Direction of the south port. The default is "inputOutput".
|
|
?eastPortName s_PortName
|
|
|
Name of the east port. The default is "opt1".
|
|
?eastPortDirection s_direction
|
|
|
Direction of the east port. The default is "inputOutput".
|
|
?westPortName s_PortName
|
|
|
Name of the west port. The default is "opt3".
|
|
?westPortDirection s_direction
|
|
|
Direction of the west port. The default is "inputOutput".
|
Return Value
|
t
|

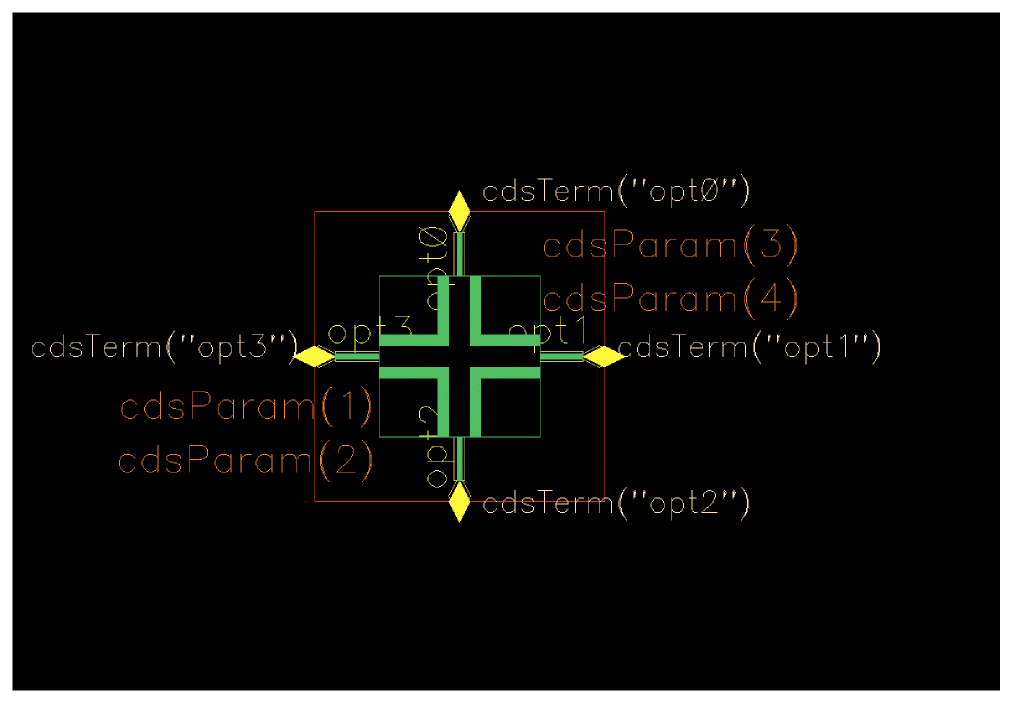

Symbol for the cross building block is generated.
|
|
nil
|
Symbol is not generated.
|
Example
cv = geGetEditCellView()
phoDrawCrossBBSymbol(cv 1.0)
