phoDrawStraightModulatorSymbol
phoDrawStraightModulatorSymbol(
d_cellViewId
n_magnification
?startPortName s_PortName
?startPortDirection s_direction
?endPortName s_PortName
?endPortDirection s_direction
?cathodeName s_name
?cathodeDirection s_direction
?anodeName s_name
?anodeDirection s_direction
)
=> t / nil
Description

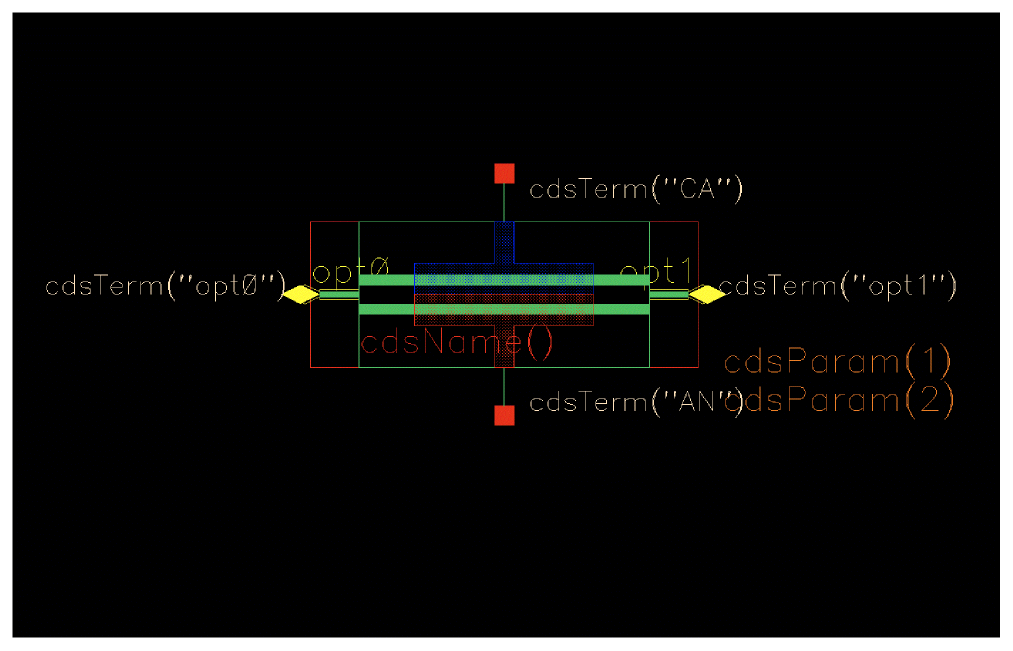

(Virtuoso Photonics Option) Draws a straight modulator symbol.
Arguments
|
d_cellViewId
|
Database ID of a cellview.
|
|
n_magnification
|
Database magnification value to set on the instance.
Default: 1.0
|
|
?startPortName s_PortName
|
|
|
Name of the starting port. The default is "opt0".
|
|
?startPortDirection s_direction
|
|
|
Direction of the starting port. The default is "inputOutput".
|
|
?endPortName s_PortName
|
|
|
Name of the ending port. The default is "opt1".
|
|
?endPortDirection s_direction
|
|
|
Direction of the ending port. The default is "inputOutput".
|
|
?cathodeName s_Name
|
|
|
Name of the cathode. The default is "CA".
|
|
?cathodeDirection s_direction
|
|
|
Direction of the cathode. The default is "inputOutput".
|
|
?anodeName s_Name
|
|
|
Name of the anode. The default is "AN".
|
|
?anodeDirection s_direction
|
|
|
Direction of the anode. The default is "inputOutput".
|
Return Value
|
t
|
Symbol for the straight modulator is generated.
|
|
nil
|
Symbol is not generated.
|
Example
cv = geGetEditCellView()
phoDrawStraightModulatorSymbol(cv 1.0)
