dbCreateCurvedAreaBoundary

dbCreateCurvedAreaBoundary(
d_cellViewId
l_curvedPoints
)
=> d_curvedAreaId / nil

Description

(Virtuoso MultiTech Framework) Creates a curved area boundary in the specified cellview, using the specified points.

Arguments

d_cellViewId

Database ID of a cellview to hold the new object.

l_curvedPoints

list(boundary [l_holes])

List of one boundary and zero or more holes forming a complex closed curve. Each boundary or hole is represented by a dbClosedCurve, which is a list of vertexes. In a vertex, pairs of adjacent vertexes represent edges, which can be straight or circular:

  • A straight edge is indicated by two end points without an arc qualifier on the beginning edge.
  • A circular edge may be indicated by explicitly specifying the center or implicitly specifying the center. The explicit specification requires the center to be on the DBU grid. The implicit specification does not require the center to be on the DBU grid.
The points list can be a mix of explicit center-based or implicit angle-based specifications. Each element in the list describes a vertex on the curved shape.

L_curvedPoints := (elem)*

elem := {<x:float> <y:float> ([("arc" | "arcByCenter") ("cw" | "ccw")] | ["arcByAngle" <angle:float>])}

Here, keywords for explicit specification are "arc" and "arcByCenter" followed by "cw"(clockwise), or "ccw" (counter clockwise), to specify the direction. Keywords for implicit specification, where you do not define the center explicitly, are "arcCentralAngle" and "arcByAngle". In implicit specification, to specify a clockwise arc, specify a negative value for the angle specification.

Value Returned

d_curvedAreaId

Database ID of a curved area object.

nil

The operation fails.

Example

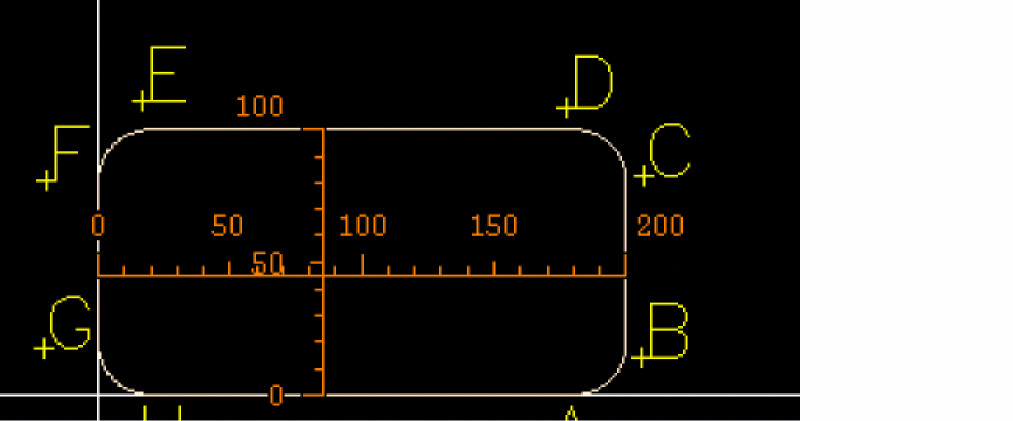

Creates curved area boundary with rounded corners.

dbCreateCurvedAreaBoundary( cv
  '(
     (180 0 "arcCentralAngle" 90)   ; A
     (200 20)                       ; B
     (200 80 "arcCentralAngle" 90)  ; C
     (180 100)                      ; D
     (20  100 "arcCentralAngle" 90) ; E
     (0   80)                       ; F
     (0   20 "arcCentralAngle" 90)  ; G
     (20  0)                        ; H
   )
)

Here:

Creates curved area boundary with holes.

solid = '(
   (180 0 "arcCentralAngle" 90)   ;A
   (200 20)                       ;B
   (200 80 "arcCentralAngle" 90)  ;C
   (180 100)                      ;D
   (20  100 "arcCentralAngle" 90) ;E
   (0   80)                       ;F
   (0   20 "arcCentralAngle" 90)  ;G
   (20  0)                        ;H
 )
 hole1 = '(
   (20 40)
   (40 40 "arc" "ccw")
   (60 40)
   (40 40 "arc" "ccw")
 )
 x=160
 y=60
 r=20
 hole2 = list(
   list(x-r y)
   list(x   y "arc" "ccw")
   list(x+r y)
   list(x   y "arc" "ccw")
 )
 dbCreateCurvedAreaBoundary(cv list(solid list(hole1 hole2)))

Considers that the center of the holes is known, therefore the explicit arc form is used. Illustrates how the explicit arc points are calculated from center point and radius in hole2.
