?cvInitProc t_cvInitProc
|
|
|
The user callback to postprocess the cellview after it has been initialized for concurrent layout.
cvInitProc(
r_cxtObj
)
=> t / nil
where
r_cxtObj is the object that retrieves the additional information related to the design open in concurrent layout.
|
|
|
You can retrieve the information in the following way:
cxtObj~>cellView
cxtObj~>window
cxtObj~>mode
where the valid value for cxtObj~>mode is cle_manager.
For example,
procedure( myTestCvInitProc(argCxt)
info("cellView = %L\n" argCxt~>cellView)
info("window = %L\n" argCxt~>window)
info("mode = %L\n" argCxt~>mode)
)
cleRegUserTriggers(?cvInitProc "myTestCvInitProc")
|
|
?postInstallProc t_postInstallProc
|
|
|
The user callback to postprocess the concurrent layout cellview after an application is installed using layout editor.
postInstallProc(r_cxtObj)
=> t / nil
where
r_cxtObj retrieves the additional information related to the design open in concurrent layout. You can retrieve the information in the following way:
cxtObj~>cellView
cxtObj~>window
cxtObj~>mode
where the cxtObj~>mode is cle_manager or cle_designer
For example,
procedure( myTestInstallProc(argCxt)
info("cellView = %L\n" argCxt~>cellView)
info("window = %L\n" argCxt~>window)
info("mode = %L\n" argCxt~>mode)
)
cleRegUserTriggers(?postInstallProc "myTestInstallProc")
|
|
?postImportProc t_postImportProc
|
|
|
The user callback to postprocess the concurrent layout cellview after importing a concurrent layout design partition.
postImportProc(r_cxtObj)
=> t / nil
where
r_cxtObj is the object that retrieves the additional information related to the design open in concurrent layout. You can retrieve the information in the following way:
cxtObj~>cellView
cxtObj~>window
cxtObj~>mode
cxtObj~>figs
cxtObj~>errCxt
where
-
cxtObj~>mode is cle_manager, or cle_designer -
cxtObj~>figs is a list of all modified figures and including new objects from peer design partitions. -
cxtObj~>errCxt is context object that contains different objects with edit conflicts.
For example,
procedure( myTestImportProc(argCxt)
info("cellView = %L\n" argCxt~>cellView)
info("window = %L\n" argCxt~>window)
info("mode = %L\n" argCxt~>mode)
info("figs = %L\n" argCxt~>figs
info("errCxt = %L\n" argCxt~>errCxt~>??)
)
cleRegUserTriggers(?postImportProc "myTestImportProc")
|
|
?postOpenProc t_postOpenProc
|
|
|
The user callback to postprocess the concurrent layout cellview after opening the concurrent layout design.
postOpenProc(r_cxtObj)
=> t / nil
where
r_cxtObj is the object that retrieves the additional information related to the design open in concurrent layout. You can retrieve the information in the following way:
cxtObj~>cellView
cxtObj~>window
cxtObj~>mode
where the cxtObj~>mode is cle_manager or cle_designer
For example,
procedure( myTestOpenProc(argCxt)
info("cellView = %L\n" argCxt~>cellView)
info("window = %L\n" argCxt~>window)
info("mode = %L\n" argCxt~>mode)
)
cleRegUserTriggers(?postOpenProc "myTestOpenProc")
|
|
?postSipProc t_postSipProc
|
|
|
The user callback to postprocess the concurrent layout cellview after the Select in Partition option is enabled.
postSipProc(r_cxtObj)
=> t / nil
where
r_cxtObj is the object that retrieves the additional information related to the design open in concurrent layout. You can retrieve the information in the following way:
cxtObj~>cellView
cxtObj~>window
cxtObj~>mode
cxtObj~>sipMode
where
-
cxtObj~>mode is cle_manager or cle_designer. -
cxtObj~>sipMode are disable, select, or enforce.
For example,
procedure( myTestSipProc(argCxt)
info("cellView = %L\n" argCxt~>cellView)
info("window = %L\n" argCxt~>window)
info("mode = %L\n" argCxt~>mode)
info("sipMode = %L\n" argCxt~>sipMode)
)
cleRegUserTriggers(?postSipProc "myTestSipProc")
|
|
?checkCvUpdateProc t_checkCvUpdateProc
|
|
|
The user callback to postprocess the concurrent layout cellview after opening or refreshing the cellview.
checkCvUpdateProc(r_cxtObj)
=> t / nil
where
r_cxtObj is the object that retrieves the additional information related to the design open in concurrent layout. You can retrieve the information in the following way:
cxtObj~>mode
cxtObj~>cellViewOnDisk
where
-
cxtObj~>mode is cle_manager or cle_designer -
cxtObj~>cellViewsOnDisk is a list of libName, cellName, and viewName opened or refreshed from the disk.
For example,
procedure( myTestCheckCvUpdateProc(argCxt)
info("mode = %L\n" argCxt~>mode)
info("cellViewOnDisk = %L\n" argCxt~>cellViewOnDisk)
)
cleRegUserTriggers(?checkCvUpdateProc "myTestCheckCvUpdateProc")
|
|
?hierEditSetupProc t_hierEditSetupProc
|
|
|
The user callback to preprocess the concurrent layout cellview before you Edit In Place in a concurrent layout design. Return value t indicates that Edit In Place is done in Incremental mode. When the return value is nil, Edit In Place is done in regular mode.
hierEditSetupProc(r_cxtObj)
=> t / nil
where
r_cxtObj is the object that retrieves the additional information related to the design open in concurrent layout. You can retrieve the information in the following way:
cxtObj~>cellView
cxtObj~>window
cxtObj~>mode
cxtObj~>eipInst
cxtObj~>eipTopCellView
where
-
cxtObj~>mode is cle_designer. -
cxtObj~>eipInst is the instance name. -
cxtObj~>eipTopCellView is the cellview in which you Edit In Place.
For example,
procedure( myTestHierEditSetupProc(argCxt)
info("cellView = %L\n" argCxt~>cellView)
info("window = %L\n" argCxt~>window)
info("mode = %L\n" argCxt~>mode)
info("eipInst = %L\n" argCxt~>eipInst)
info("eipTopCellView = %L\n" argCxt~>eipTopCellView)
)
cleRegUserTriggers(?hierEditSetupProc "myTestHierEditSetupProc")
|
|
?defLayerProc t_defLayerProc
|
|
|
The user callback to preprocess the concurrent layout cellview before applying the layers during Defining Design Partitions.
|
|
|
defLayerProc(r_cxtObj)
=> l_layerName / nil
where
r_cxtObj is the object that retrieves the additional information related to the design open in concurrent layout. You can retrieve the information in the following way:
cxtObj~>cellView
cxtObj~>window
cxtObj~>mode
cxtObj~>partition
cxtObj~>layerList
where
-
cxtObj~>mode is cle_manager. -
cxtObj~>partition is the design partition name. -
cxtObj~>layerList is the list of layer names applied to the design partition.
For example,
The myTestDefLayerProc function only accepts metal layers before applying layers in the design partition.
procedure( myTestDefLayerProc(argCxt)
let((cv layerList filterLayers)
info("window = %L\n" argCxt->window)
info("cellView = %L\n" argCxt->cellView)
info("mode = %L\n" argCxt->mode)
info("partn = %L\n" argCxt->partition)
info("layer = %L\n" argCxt->layerList)
cv = argCxt->cellView
foreach(ly argCxt->layerList
when(techGetLayerFunction(techGetTechFile(cv) ly) == "metal"
filterLayers = cons(ly filterLayers)
)
)
reverse(filterLayers)
)
)
cleRegUserTriggers(?defLayerProc "myTestDefLayerProc")
|
|
?postClearAllProc t_postClearAllProc
|
|
|
The user callback to postprocess the concurrent layout cellview after the Clear All Design Partitions command is applied.
postClearAllProc(r_cxtObj)
=> t / nil
where
r_cxtObj is the object that retrieves the additional information related to the design open in concurrent layout. You can retrieve the information in the following way:
cxtObj~>cellView
cxtObj~>window
cxtObj~>mode
cxtObj~>cellViewsToRetain
cxtObj~>cellViewsToCleanUp
cxtObj~>eventType
where
-
cxtObj~>mode is cle_manager. -
cxtObj~>cellViewsToRetain is the list of libName, cellName, and viewName to be retained after the Clear All Design Partitions command is used. -
cxtObj~>cellViewsToCleanUp is the list of libName, cellName, and viewName to be removed or reset after the Clear All Design Partition command is used. -
cxtObj~>eventType is postClearAll if the callback is triggered after clearing all design partitions.
For example,
procedure( myTestClearAllProc(argCxt)
info("cellView = %L\n" argCxt~>cellView)
info("window = %L\n" argCxt~>window)
info("mode = %L\n" argCxt~>mode)
info("cellViewsToRetain = %L\n" argCxt~>cellViewsToRetain)
info("cellViewsToCleanUp = %L\n" argCxt~>cellViewsToCleanUp)
info("eventType = %L\n" argCxt~>eventType)
)
cleRegUserTriggers(?postClearAllProc "myTestClearAllProc")
|
|
?rmbMenuProc t_rmbMenuProc
|
|
|
The user callback to display the action when you right-click the design partitions in the Concurrent Layout assistant.
rmbMenuProc(w_windowId)
=> t / nil
where
w_windowId is the current main canvas area of a session window.
For example,
procedure( myUserActions(win)
list((list("myAction" "Action1CB" t) list("myAction2" "Action2CB" nil))
)
cleRegUserTriggers(?rmbMenuProc "myUserActions")

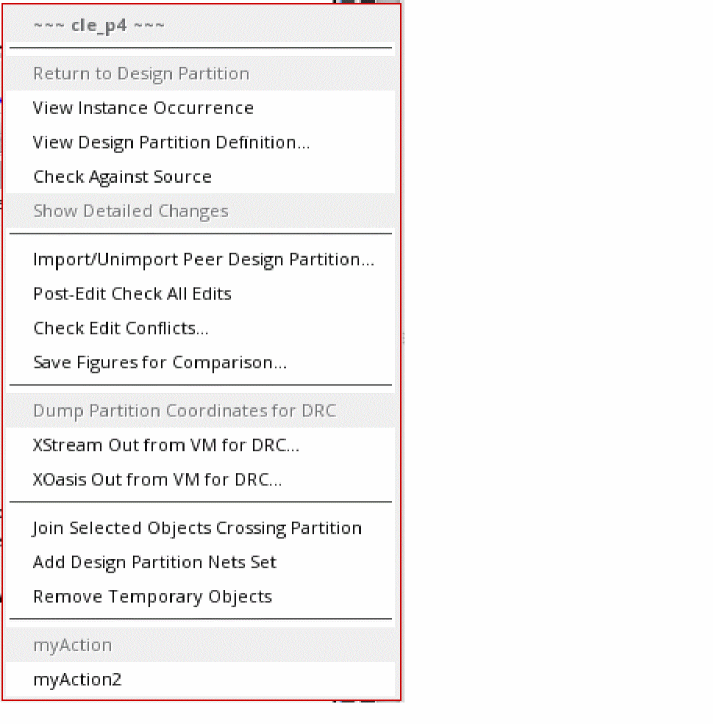

The example adds myAction and myAction2 commands in the context menu.
|
|
|
|
|
?postCreateProc t_postCreateProc
|
|
|
The user callback to postprocess the concurrent layout cellview after creating the design partition views.
postCreateProc(r_cxtObj)
=> t / nil
where
r_cxtObj is the object that retrieves the additional information related to the design open in concurrent layout. You can retrieve the information in the following way:
cxtObj~>cellView
cxtObj~>window
cxtObj~>mode
cxtObj~>cellViewsOnDisk
cxtObj~>eventType
where
-
cxtObj~>mode is cle_manager. -
cxtObj~>cellViewsOnDisk is the list of libName, cellName, and viewName created on the disk. -
cxtObj~>eventType is postCreate if the callback is triggered after creating the design partition views.
For example,
procedure( myTestCreateProc(argCxt)
info("cellView = %L\n" argCxt~>cellView)
info("window = %L\n" argCxt~>window)
info("mode = %L\n" argCxt~>mode)
info("cellViewsOnDisk = %L\n" argCxt~>cellViewsOnDisk)
info("eventType = %L\n" argCxt~>eventType)
)
cleRegUserTriggers(?postCreateProc "myTestCreateProc")
|
|
?postSubmitProc t_postSubmitProc
|
|
|
The user callback to postprocess the concurrent layout cellview after submitting the design partitions.
postSubmitProc(r_cxtObj)
=> t / nil
where
r_cxtObj is the object that retrieves the additional information related to the design open in concurrent layout. You can retrieve the information in the following way:
cxtObj~>cellView
cxtObj~>window
cxtObj~>mode
cxtObj~>cellViewsOnDisk
cxtObj~>eventType
where
-
cxtObj~>mode is cle_designer. -
cxtObj~>cellViewsOnDisk is the list of libName, cellName, and viewName submitted on the disk. -
cxtObj~>eventType value is postSubmit if the callback is triggered after submitting a design partition.
For example,
procedure( myTestSubmitProc(argCxt)
info("cellView = %L\n" argCxt~>cellView)
info("window = %L\n" argCxt~>window)
info("mode = %L\n" argCxt~>mode)
info("cellViewsOnDisk = %L\n" argCxt~>cellViewsOnDisk)
info("eventType = %L\n" argCxt~>eventType)
)
cleRegUserTriggers(?postSubmitProc "myTestSubmitProc")
|
|
?postRejectProc t_postRejectProc
|
|
|
The user callback to postprocess the concurrent layout cellview after rejecting a design partition.
postRejectProc(r_cxtObj)
=> t / nil
where
r_cxtObj is the object that retrieves the additional information related to the design open in concurrent layout. You can retrieve the information in the following way:
cxtObj~>cellView
cxtObj~>window
cxtObj~>mode
cxtObj~>cellViewsOnDisk
cxtObj~>eventType
cxtObj~>comment
where,
-
cxtObj~>mode is cle_manager. -
cxtObj~>cellViewsOnDisk will be the list of libName, cellName, and viewName rejected on disk. -
cxtObj~>evenType is postReject if the callback is triggered after rejecting the design partitions. -
cxtObj~>comment is the reason user specifies when rejecting a design partition.
For example,
procedure( myTestRejectProc(argCxt)
info("cellView = %L\n" argCxt~>cellView)
info("window = %L\n" argCxt~>window)
info("mode = %L\n" argCxt~>mode)
info("cellViewsOnDisk = %L\n" argCxt~>cellViewsOnDisk)
info("eventType = %L\n" argCxt~>eventType)
info("rejected reason = %L\n" argCxt~>comment)
)
cleRegUserTriggers(?postRejectProc "myTestRejectProc")
|
|
?postCommitProc t_postCommitProc
|
|
|
The user callback to postprocess the concurrent layout cellview after committing a design partition.
postCommitProc(r_cxtObj)
=> t / nil
where
r_cxtObj is the object that retrieves the additional information related to the design open in concurrent layout. You can retrieve the information in the following way:
cxtObj~>cellView
cxtObj~>window
cxtObj~>mode
cxtObj~>cellViewsOnDisk
cxtObj~>eventType
where
-
cxtObj~>mode is cle_manager. -
cxtObj~>cellViewsOnDisk is a list of libName, cellName, and viewName committed on the disk. -
cxtObj~>eventType is postCommit if the callback is triggered after committing design partitions.
For example,
procedure( myTestCommitProc(argCxt)
info("cellView = %L\n" argCxt~>cellView)
info("window = %L\n" argCxt~>window)
info("mode = %L\n" argCxt~>mode)
info("cellViewsOnDisk = %L\n" argCxt~>cellViewsOnDisk)
info("eventType = %L\n" argCxt~>eventType)
)
cleRegUserTriggers(?postCommitProc "myTestCommitProc")
|
|
?preOpenScratchProc t_preOpenScratchProc
|
|
|
The user callback to preprocess the top cellview before opening a concurrent layout scratch cellview for editing. In this case, the top cellview is not locked but write permission is required for corresponding layout.oa.
|
|
|
In most DM environments, you still have the write permission after checkin; otherwise, you can use this callback for non-exclusive checkout of the top cellview.
preOpenScratchProc(r_cxtObj)
=> t / nil
where,
r_cxtObj is the object that retrieves the additional information related to the design open in concurrent layout. You can retrieve the information in the following way:
cxtObj~>cellView
cxtObj~>window
cxtObj~>mode
cxtObj~>cellViewsOnDisk
cxtObj~>topCellViewOnDisk
where,
-
cxtObj~>mode is cle_designer. The manager has no need to edit a scratch file. -
cxtObj~>cellViewsOnDisk is a list of libName, cellName, and viewName opened on the disk. -
cxtObj~>topCellViewOnDisk is the top cellview of libName, cellName, and viewName on which the concurrent layout scratch cellview is based.
For example,
procedure( myTestPreOpenScratchProc(argCxt)
info("cellView = %L\n" argCxt->cellView)
info("window = %L\n" argCxt->window)
info("mode = %L\n" argCxt->mode)
info("cellViewsOnDisk = %L\n" argCxt->cellViewsOnDisk)
info("top cellView = %L\n" argCxt->topCellViewOnDisk)
)
cleRegUserTriggers(?preOpenScratchProc "myTestPreOpenScratchProc")
|
