lxGetPermutedInstTerms

lxGetPermutedInstTerms(
d_layInstID
)
=> ld_instTermIDs / nil

Description

Returns the list of database IDs of instance terminals that have been permuted on a specified layout instance. The function can identify instance terminals that have been permuted, even if there is no permuteRule property on the schematic or layout instances or their masters.

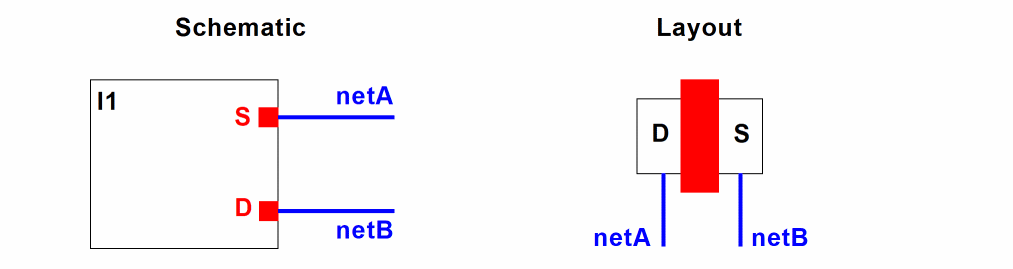

In the example below, the connectivity of instance terminals S and D has been permuted in the layout implementation of schematic instance I1. lxGetPermutedInstTerms would return the database IDs for instance terminals D and S in the layout instance.

Arguments

Value Returned

Example

lxGetPermutedInstTerms(instID)
