weCWHoldWidth

weCWHoldWidth(
)
=> t / nil

Description

This function is used for the create wire command when smart snapping is active. The width that is highlighted by smart snapping is used by the next wire that is being created even if the wire is created at another position than the current one.

The default bindkey that can be used for this function is Ctrl+l and is used interactively.

Arguments

None

Value Returned

t	The command ran successfully.
nil	The command failed to run or an error occurred.

Examples

The following example creates a wire with the width that is highlighted by smart snapping.

weCWHoldWidth()

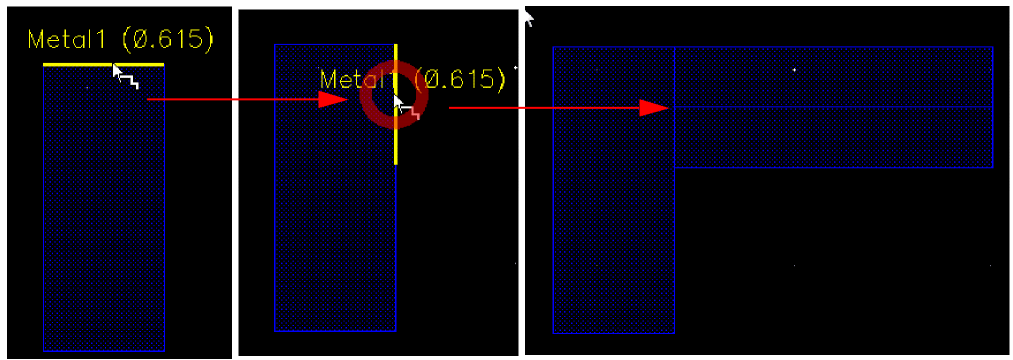

The following figure shows a wire of width 0.615 being created.
