?name s_fieldName

Handle to the spin box field. To reference it, use:

formHandle->hiFieldSym

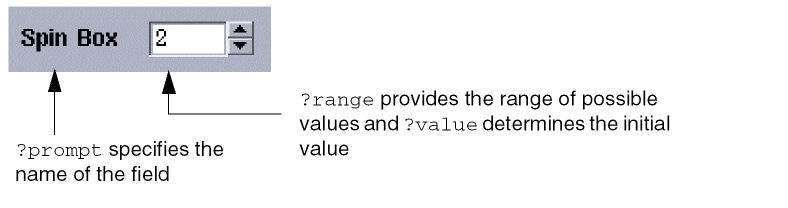

?prompt t_prompt

The name that appears next to the spin box field, specified as a string.

?help g_fieldHelp

A string, symbol, list of strings, or list of symbols used to reference help. If this argument is not specified, s_name is used. This argument is not currently used.

value g_value

The initial and current value of the field. g_value must be an integer within the range specified by l_rangeOfItems.

?defValue g_defaultValue

The default value of the field. g_defaultValue must be an integer within the range specified by l_rangeOfItems.

?font t_fontName

This optional argument is accepted but not supported currently.

?callback g_callback

A string, function object, or symbol type callback. If the callback is of string type, you can specify one or more SKILL functions or even multiple SKILL statements that should be executed when the value of the field changes.

?range l_rangeOfItems

A list of two integers defining the range of values in the spin box field. The first integer must be less than the second integer.

For example:

?range list(-12 12)

?arrowOrientation g_arrowOrientation

This argument is now ignored. Arrows that are used to cycle through the spin box field are always vertical and are always displayed on the right side of the field.

?shadowed g_shadowed

This argument is now ignored. There is always a shadow box around the arrows in the spin box field.

?enabled g_enabled

Specifies whether the fields in the layout are enabled. The default value is t.

?editable g_editable

t or nil. Specify t if you want the field to be editable; specify nil if you want it to be read-only.

?obeyWidth g_obeyWidth

t or nil. Specify t if you want the spinbox field to follow the width specified in the 2D attributes when the form is created. The default value is nil, which means the width specified in the 2D attributes is ignored.

For information on 2D attributes, see Two Dimensional Form Layout.

?invisible g_invisible

Specifies whether the layout and the fields within are invisible. The default value is nil.

?wrapAround g_wraparound

Increments or decrements the spin box field as normal, but stop at the max/min values respectively. The default value is t.

?justification s_justification

Specifies one of the following symbols for the value added to the spinbox field: ’left, ’center, or ’right.
The default value is ’left.

r_fieldHandle

Handle to the spin box field.
