awvCreateBus

awvCreateBus(
t_busName
l_waveList
r_radix
)
=> o_bus / nil

Description

Creates a digital bus from the specified digital waveforms and the radix type.

Arguments

t_busName	Name of the digital bus.
l_waveList	List of digital waveforms or expressions.
r_radix	Radix of the bus. Valid values are Binary, Octal, Ascii, Hex, Signed Decimal, and Unsigned Decimal.

Value Returned

o_bus	Waveform ID of the digital bus.
nil	Digital bus cannot be created because of an error.

Examples

The following example creates a Waveform window and returns its window ID.

awvCreatePlotWindow()

=> window:3

The following example opens simulation results stored in the specified directory.

openResults("/servers/user/design/mixed_signal.raw")

"/servers/user/design/mixed_signal.raw"

The following example lists the results available in the currently open results directory.

results()

=>

(tranOp model instance output tran

    variables

)

The following example selects the tran result of the results directory.

selectResult('tran)

=> stdobj@0x37f03410

The following examples create digital waveform objects dig1, dig2, dig3, and dig4 from the digital signals net021, net027, net031, and net034 signals stored in the tran results of the results directory.

dig1=v("topLevel.net021")

=> srrWave:0x382bf020

dig2=v("topLevel.net027")

=> srrWave:0x382bf030

dig3=v("topLevel.net031")

=> srrWave:0x382bf040

dig4=v("topLevel.net034")

=> srrWave:0x382bf050

The following examples create waveform objects myBus1, myBus2, and myBus3, representing digital buses generated from the specified list of digital signals, dig1, dig2, dig3, and dig4 and with the specified radix.

myBus1=awvCreateBus("myBus1" list(dig1 dig2 dig3 dig4) "Hex")

=> srrWave:0x382bf060

myBus2=awvCreateBus("myBus2" list(dig1 dig2 dig3 dig4) "Binary")

=> srrWave:0x382bf070

myBus3=awvCreateBus("myBus3" list(dig1 dig2 dig3 dig4) "Octal")

=> srrWave:0x382bf080

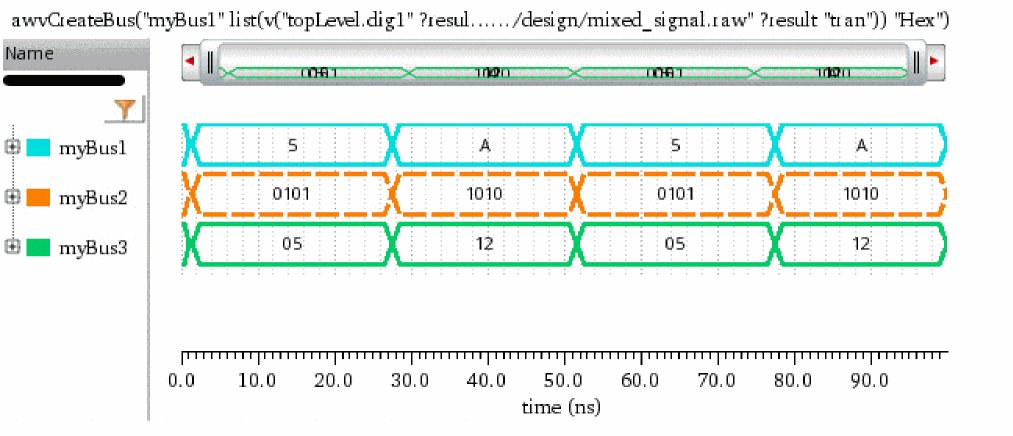

The following example plots the digital buses in the current Waveform window.

awvPlotWaveform(

    awvGetCurrentWindow()

    list(myBus1 myBus2 myBus3)

    ?color list("y12" "y6" "y18")

    ?lineStyle list("solid" "dash" "solid")

    ?lineThickness list("thick" "thick" "thick")

    )

=> t

The following example creates a digital bus with the digital waveforms dig1 and dig2 with the Binary radix.

dig1= getData("topLevel.net021" ?result "tran" ?resultsDir "./mixed_signal.raw")

=> srrWave:0x397fa030

dig2= getData("topLevel.net034" ?result "tran" ?resultsDir "./mixed_signal.raw")

=> srrWave:0x397fa040

awvCreateBus("myBus" list(dig1 dig2) "Binary")

=> srrWave:0x397fa130
