awvGetHiWindow

awvGetHiWindow(
w_windowID
)
=> t / nil

Description

Returns the ID of the waveform HI window corresponding to the specified Waveform window ID.

This function is primarily used to customize menu using HI calls.

Arguments

w_windowID

Waveform window ID.

Value Returned

w_HIWindowID	Returns the HI window ID.
nil	Indicates an error.

Examples

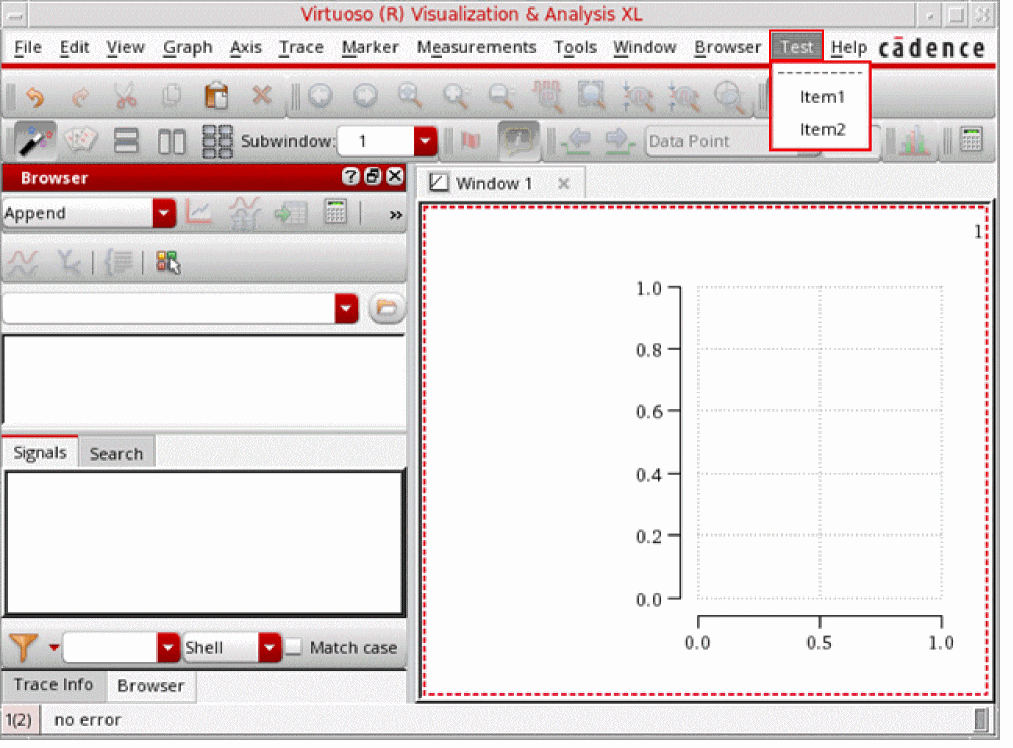

The following example adds a procedure myCreateMenu, which creates a new banner menu Test in the Results Browser. The Test menu has two options, Item1 and Item2.

• When you click Item1, the message "Item 1 Selected" is printed in the CIW.
• When you click Item2, the message "Item 2 Selected" is printed in the CIW.

myCreateMenu

=> t

windowId=awvGetHiWindow(awvGetCurrentWindow())

procedure(

 myCreateMenu(windowId)

 win=awvGetHiWindow(windowId)

 let((item1 item2)

  item1=hiCreateMenuItem(

   ?name 'item1

   ?itemText "Item1"

   ?callback "println(\"Item 1 Selected\")"

  )

  item2=hiCreateMenuItem(

   ?name 'item2

   ?itemText "Item2"

   ?callback "println(\"Item 2 Selected\")"

  )

  hiCreatePulldownMenu( 'myMenu "Test" list(item1 item2))

  hiInsertBannerMenu(win myMenu hiGetNumMenus(win))

  )

 )

 awvInitWindowFunctionAdd('myCreateMenu)

=> myCreateMenu

=> t

The following message is printed in CIW when you click Item1 from the Test menu.

println("Item 1 Selected")

"Item 1 Selected"

The following message is printed in CIW when you click Item2 from the Test menu.

println("Item 2 Selected")

"Item 2 Selected"
