awvPlaceQContour

awvPlaceQContour(
w_windowID
n_QValue
[ ?subwindow x_subwindow ]
[ ?label t_label ]
[ ?outlineColor t_outlineColor ]
[ ?fillColor t_fillColor ]
)
=> t_markerID / nil

Description

Adds two Q contour curves to the specified circular graph. Q is defined as Reactance/Resistance. A Q contour curve shows the curve of constant Q value on the Impedance Smith Chart.

Arguments

w_windowID	Waveform window ID
n_QValue	Q value for which the Q contour curves are to be drawn.
?subwindow x_subwindow
	Identification number of the subwindow, which is found in the top-right corner of the subwindow. If you do not specify this argument, the current subwindow is used.
?outlineColor t_outlineColor
	Outline color of the Q contour curves.
?fillColor t_fillColor
	Color to be filled in the Q contour curves.

Value Returned

t_markerID	Returns IDs of two Q contour curves added for the specified Q value.
nil	Q contour curves cannot be added because of an error.

Examples

The following function creates a Waveform window and returns ID of the Waveform window.

awvCreatePlotWindow()

=> window:3

The following example opens the simulation results stored in the specified directory ampsim.raw.

openResults("/servers/user/design/ampsim.raw")

=> "/servers/user/design/ampsim.raw"

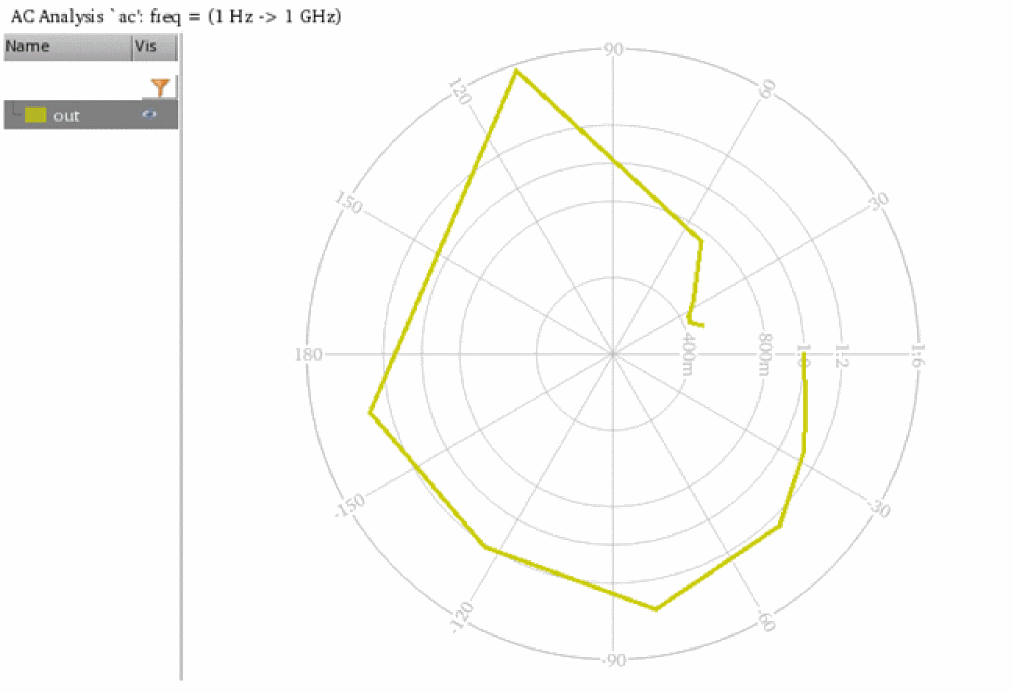

The following example creates plots the signal out from the ac-ac results of the specified results directory as a polar graph in the current Waveform window.

awvPlotSignals('(("/servers/user/design/ampsim.raw" (("ac-ac" ("out"))))) ?plotStyle "Append" ?graphType "Polar")

=> t

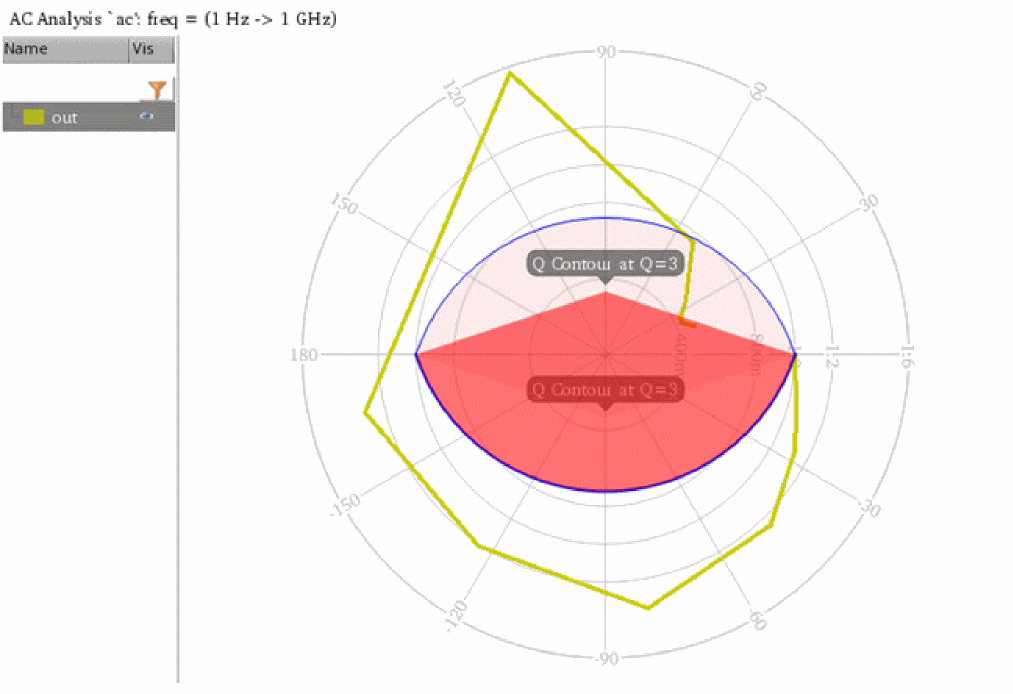

The following example adds two Q contour curves for the Q value 3 to the circular graph in the current Waveform window.

awvPlaceQContour(awvGetCurrentWindow() 3 ?label "Q Contour at Q=3" ?outlineColor "blue" ?fillColor "red")

=> ("circleMarker[1.1.1]" "circleMarker[1.1.2]")
