awvPlaceYMarker

awvPlaceYMarker(
w_windowID
n_yLoc
[ ?label t_label ]
[ ?subwindow x_subwindow ]
[ ?stripNum x_stripNumber ]
)
=> t_markerID / nil

Description

Places a horizontal marker at the specified y coordinate on the specified trace.

Arguments

w_windowID	Waveform window ID
n_yLoc	The y coordinate at which the horizontal marker is to be placed.
?label t_label	Label to be set on the horizontal marker.
?subwindow x_subwindow
	Identification number of the subwindow, which is found in the top-right corner of the subwindow. If you do not specify this argument, the current subwindow is used.
?stripNum x_stripNumber
	Strip number of the trace. If you do not specify this argument, the horizontal marker is placed on the currently selected strip. If no strip is currently selected in the specified subwindow or the current subwindow, the default value 1 is used, which means that the horizontal marker is placed on the trace with strip number 1.

Value Returned

t_markerID	ID of the horizontal marker.
nil	The horizontal marker cannot be placed on the trace because of an error.

Examples

The following example creates a Waveform window and returns its window ID.

awvCreatePlotWindow()

=> window:3

The following example opens simulation results stored in the specified directory.

openResults("/servers/user/design/ampsim.raw")

=> "/servers/user/design/ampsim.raw"

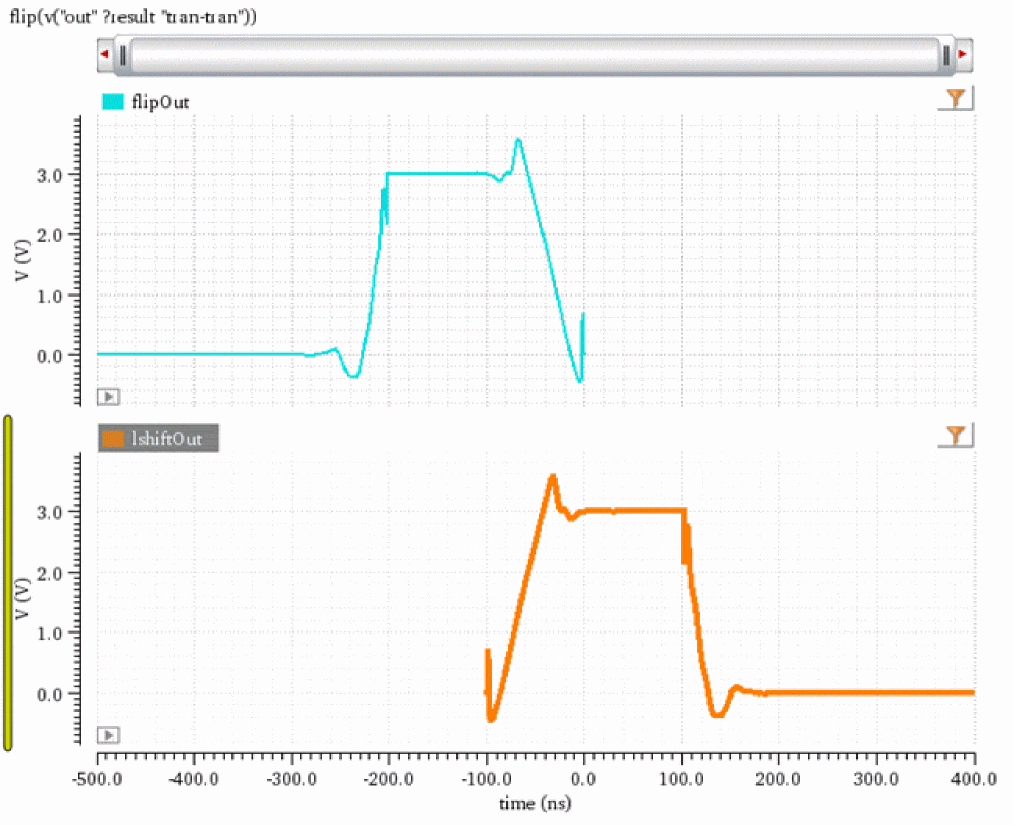

The following example evaluates the expression flip applied on the signal out and plots the resulting waveform in strip number 1 of the specified Waveform window. The signal out is available in the tran-tran result of the results directory ampsim.raw.

awvPlotExpression(window(3) "flip(v(\"out\" ?result \"tran-tran\")" nil ?expr list("flipOut") ?index list(1) ?color list("y12") ?lineType list("line") ?lineStyle list("solid") ?lineThickness list("medium") ?stripNumber list(1))

=> t

The following example evaluates the expression lshift applied on the signal out and plots the resulting waveform in strip number 2 of the specified Waveform window. The signal out is available in the tran-tran result of the results directory ampsim.raw.

awvPlotExpression(window(3) "lshift(v(\"out\" ?result \"tran-tran\") 100ns)" nil ?expr list("lshiftOut") ?index list(2) ?color list("y6") ?lineType list("line") ?lineStyle list("solid") ?lineThickness list("medium") ?stripNumber list(2))

=> t

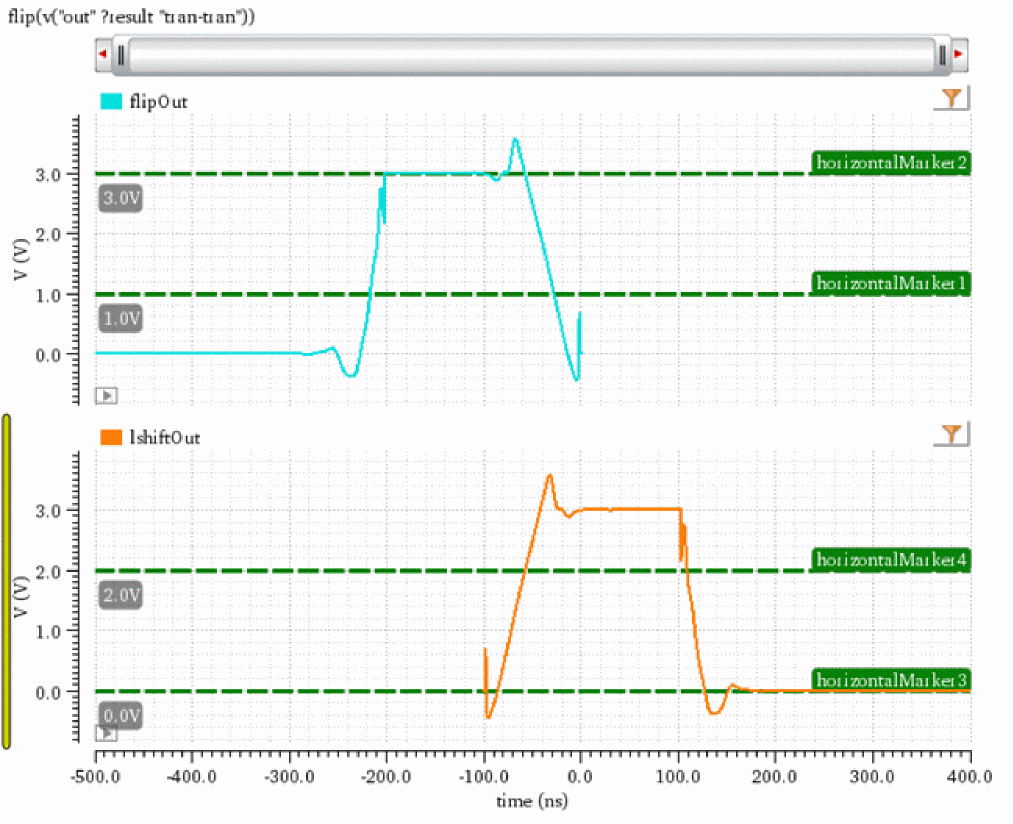

The following examples apply horizontal markers with label horizontalMarker1 and horizontalMarker2 at y=1.0V and y=3.0V on the trace in strip number 1.

awvPlaceYMarker(window(3) 1.0 ?label "horizontalMarker1" ?stripNum 1)

=> "horizMarker[1.1.1]"

awvPlaceYMarker(window(3) 3.0 ?label "horizontalMarker2" ?stripNum 1)

=> "horizMarker[1.1.2]"

The following examples apply horizontal markers with label horizontalMarker3 and horizontalMarker4 at y=0.0V and y=2.0V on the trace in strip number 2.

awvPlaceYMarker(window(3) 0.0 ?label "horizontalMarker3" ?stripNum 2)

=> "horizMarker[1.1.3]"

awvPlaceYMarker(window(3) 2.0 ?label "horizontalMarker4" ?stripNum 2)

=> "horizMarker[1.1.4]"
