awvSetSmithYLimit

awvSetSmithYLimit(
w_windowID
l_minMax
[ ?subwindow x_subwindow ]
)
=> t / nil

Description

Sets the y axis display limits for a subwindow with a Smith display mode.

Adjusts the vertical limit of the graph to include the user-specified limit and positions the graph such that the midpoint of the user limit is centered. Depending on the aspect ratio of the window and current zoom state, the resulting limit may differ from the user-specified limit.

This command does not take effect if the display mode is set to strip or composite.

Arguments

w_windowID	Waveform window ID.
l_minMax	List of two numbers in waveform coordinates that describe the limits for the display. The first number is the minimum and the second is the maximum. If this argument is set to nil, the limit is set to auto-scale.
?subwindow x_subwindow
	Identification number of the subwindow, which is found in the top-right corner of the subwindow. If you do not specify this argument, the current subwindow is used.

Value Returned

t	Display limits for y axis are set successfully.
nil	Display limits cannot be set because of an error.

Examples

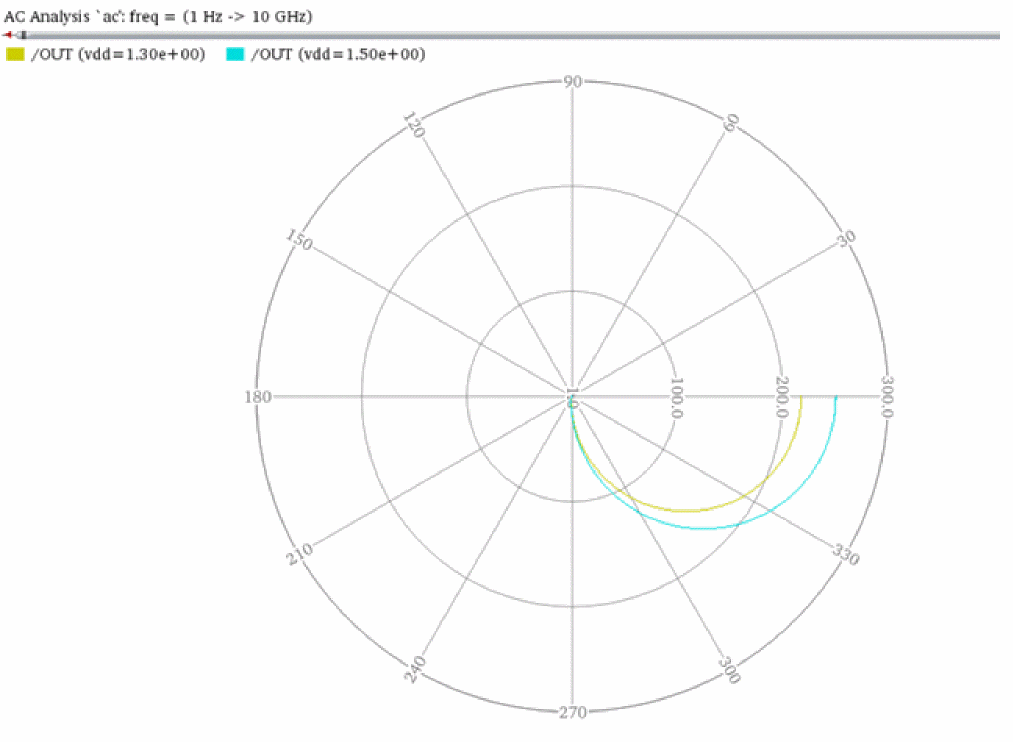

Consider the following graph window, where both X and Y limits are [-300, 300].

Run the following:

awvSetSmithXLimit(awvGetCurrentWindow() list(0 300) ?subwindow 1)

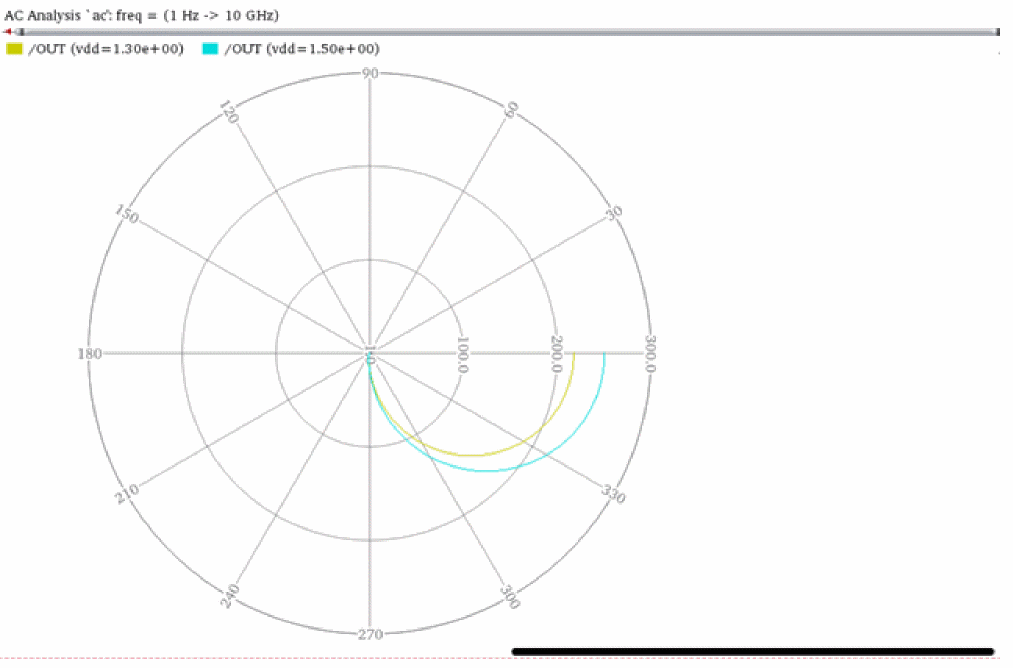

The x limit is now [0, 300] and the y limit remains [-300, 300].

To preserve the y limit without stretching the graph, the horizontal zoom is unchanged, but the graph is adjusted such that [0, 300] is horizontally centered.

Now, run the following command:

awvSetSmithYLimit(awvGetCurrentWindow() list(-200 100) ?subwindow 1)

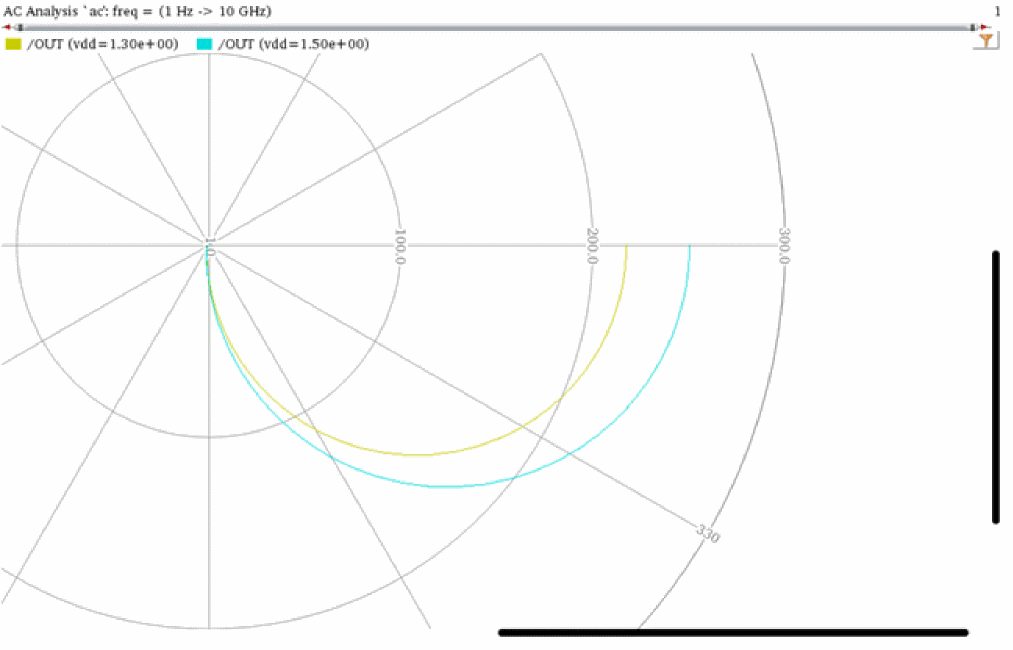

The x limit is still set to [0, 300] but the y limit is now [-200, 100]. The graph is vertically zoomed to [-200, 100], but the horizontal zoom is forced to include more than the user-specified x limit.

Now, when you run the following:

awvSetSmithYLimit(awvGetCurrentWindow() list(-150 25) ?subwindow 1)

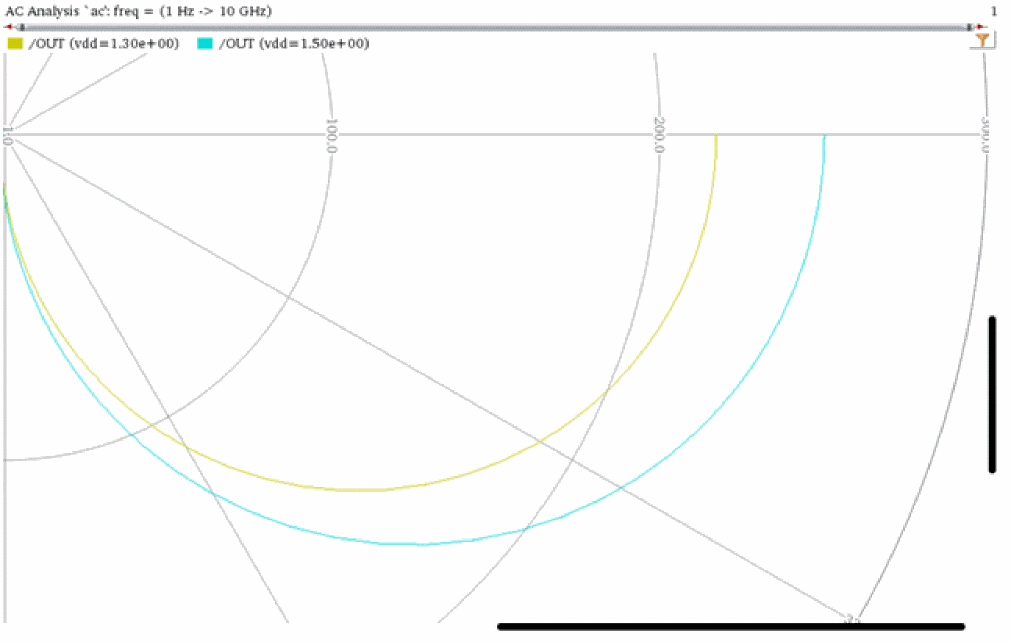

The resulting limits match the user-specified limits only if the aspect ratio of the zoom rectangle and graph area match. In this example, setting x limit to [0, 300] and y limit to [-150, 25] fits this requirement.
