famEval

famEval(
l_expression
[ t_sweepVariable1 ]
[ s_sweepValue1 ]
)
=> o_waveform / n_value / nil

Description

Evaluates the specified expression with the specified sweep variables.

Arguments

l_expression	Expression to be evaluated.
t_sweepVariable1	Name of the sweep variable. This is an optional argument.
s_sweepValue1	Value of the sweep variable. This is an optional argument.

Value Returned

o_waveform	Output waveform object.
n_value	Output scalar value.
nil	because of an error.

Examples

The following example opens simulation results stored in the specified directory.

openResults("/servers/user/design/sweeptran.raw")

=> "/servers/user/design/sweeptran.raw"

The following example lists the results stored in the current results directory.

results()

=> tran()

The following example selects the tran result in the current results directory.

selectResults('tran)

=> stdobj@0x31f1f2f0

The following example creates a waveform object by evaluating the flip expression applied on the signal out, which is available in the tran result of the results directory /servers/user/design/sweeptran.raw.

familyWave=famEval(flip(v("out")))

=> srrWave:0x360da030

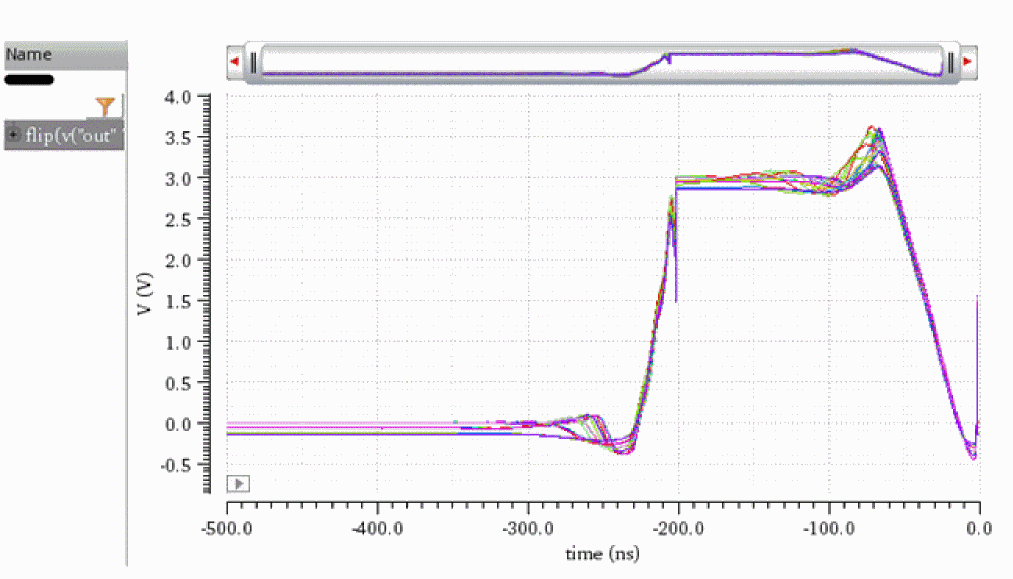

The following example plots the waveform object represented by familyWave.

plot familyWave

=> t
