swapSweep

swapSweep(
o_waveform
t_sweepVariable
n_xValue
)
=> o_waveform / nil

Description

Swaps x-axis values with the specified sweep variable.

Arguments

o_waveform	Waveform whose x-axis values you want to swap with a sweep variable.
t_sweepVariable	Name of the sweep variable.
n_xValue	X-axis value at which the specified waveform is swapped with the sweep variable.

Value Returned

o_waveform	Waveform that has x-axis values swapped with the sweep variable.
nil	X-axis values of the specified waveform cannot be swapped because of an error.

Examples

The following example creates a Waveform window and returns its ID.

awvCreatePlotWindow()

=> window:3

The following example opens simulation results stored in the specified directory.

openResults("/servers/user/design/sweeptran.raw")

=> "/servers/user/design/sweeptran.raw"

The following example selects the tran result from the specified results directory.

selectResult('tran)

=> stdobj@0x3295cbc0

The result tran contains a waveform out generated by simulating parametric data using the sweep variables, vdd and temp. The following example stores the waveform object ID of the signal out to a variable waveform.

waveform=v("out")

=> srrWave:0x36c69020

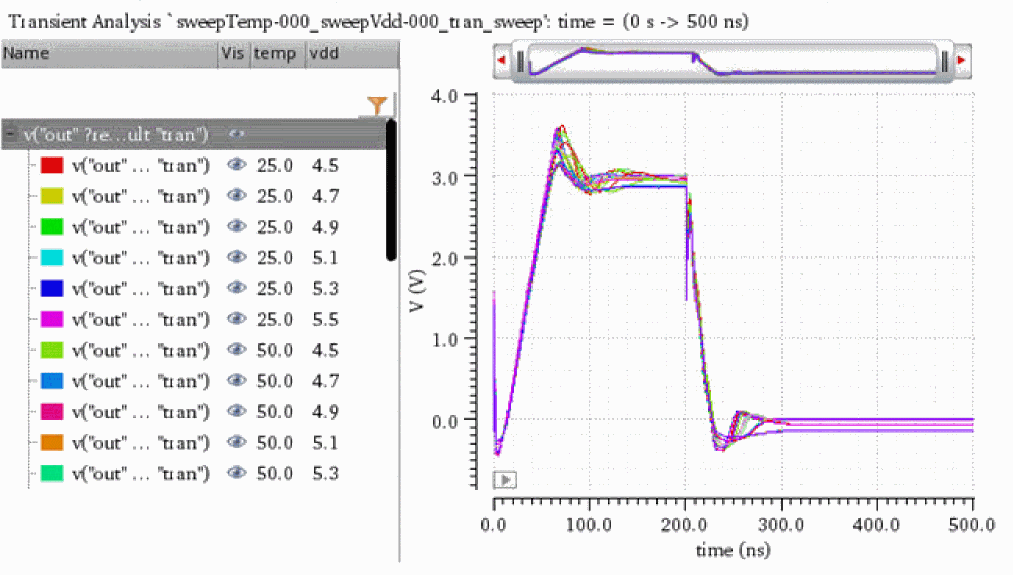

The following example plots the waveform out in the Waveform window that you created using the function awvCreatePlotWindow.

plot waveform

=> t

The following example swaps x-axis values of waveform out at x=50ns with the sweep variable vdd.

swapWaveformVdd=swapSweep(waveform "vdd" 50ns)

=> srrWave:0x36c690d0

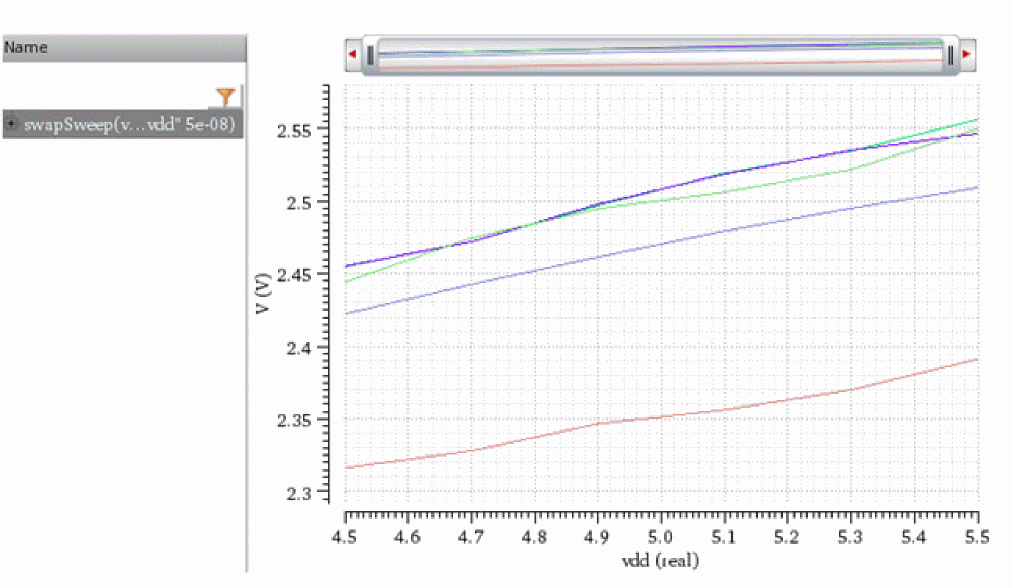

The following example plots the swapped waveform.

plot swapWaveformVdd

=> t

Note that the output waveform has x axis swapped with the specified sweep variable vdd.

The following example swaps x-axis values of waveform out at x=50ns with the sweep variable temp.

swapWaveformTemp=swapSweep(waveform "temp" 50ns)

=> srrWave:0x36c69270

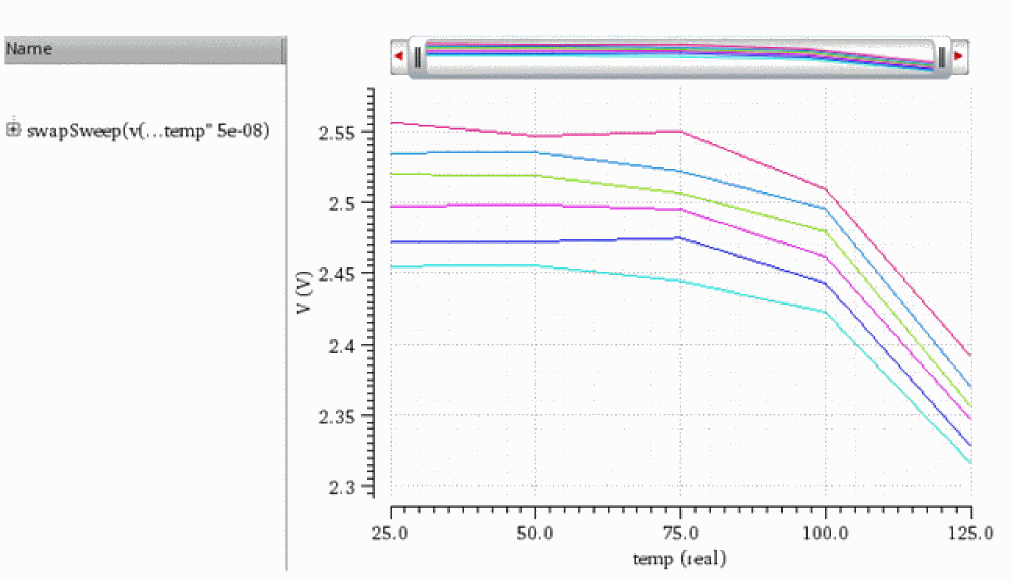

The following example plots the swapped waveform.

plot swapWaveformTemp

=> t

Note that the output waveform has x axis swapped with the specified sweep variable temp.
