Defining the Severity of Design Checks

Power Manager through its in-design checking functionality performs various static low power structural checks for level shifters and isolation cells. It also aids in checking for invalid connectivity of bulk node for transistors used in the design by performing the bulk checks.

To define the severity for the checks:

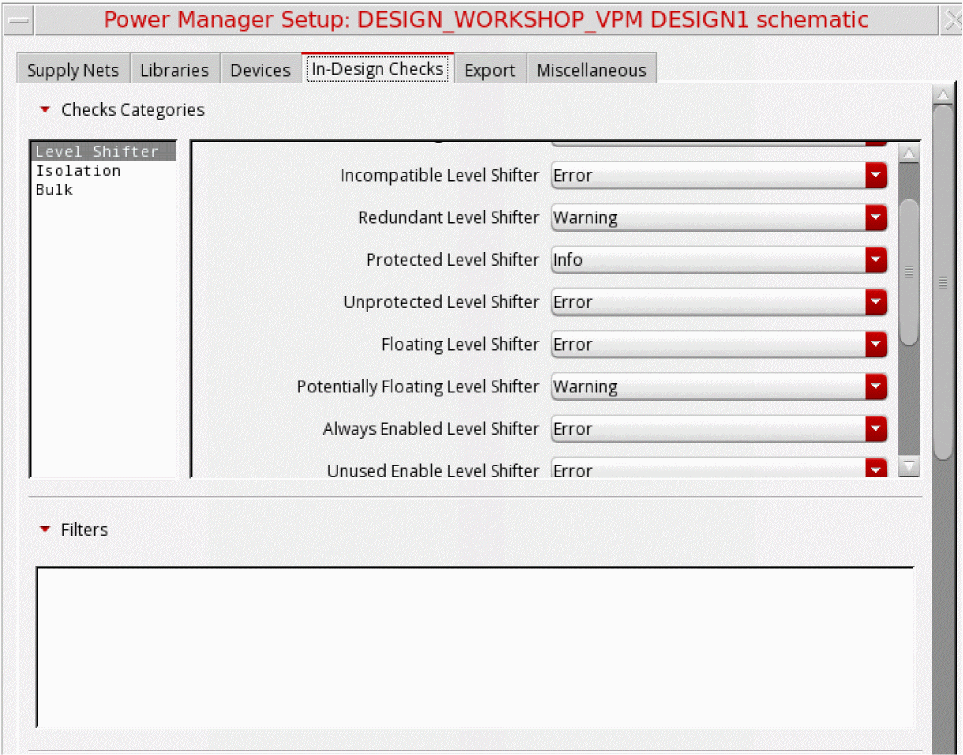

1. On the In-Design Checks tab of the Power Manager Setup form, select the Level Shifter or Isolation tab.
2. Specify the severity level for various low power checks in the Severity section.
