oaMinRectArea

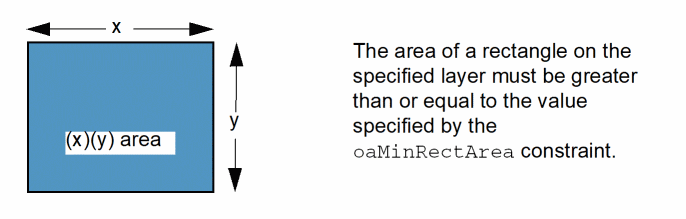

Specifies the minimum area for rectangular shapes on a layer. Optionally, you can also specify a minimum and maximum width for the shape beyond which the constraint does not apply.

To specify the minimum area for non-rectangular, polygonal shapes, use the minArea constraint.

oaMinRectArea Quick Reference

Constraint Type	Layer
Value Types	AreaValue
Database Types	Design, Technology
Scope	design, foundry
Category	Area

Value Type

AreaValue

Specifies the minimum area in user units2 for rectangular shapes on the layer.

Optional Parameters

width	Specifies that the constraint applies only to shapes with width greater than or equal to this value. Type: Value
maxWidth	Specifies that the constraint applies only to shapes with width less than or equal to this value. Type: Value

Examples

Example 1: oaMinRectArea

Sets the minimum rectangular area for a shape on Metal1 to 5.0 user units².

set_layer_constraint -constraint oaMinRectArea -layer Metal1 -AreaValue 5.0

Example 2: oaMinRectArea with width and maxWidth

Sets the minimum rectangular area for a shape on Metal1 to 0.08 user units² if the width of the shape is greater than or equal to 0.4 and less than or equal to 0.5.

set_constraint_parameter -name width -Value 0.4
set_constraint_parameter -name maxWidth -Value 0.5
set_layer_constraint -layer Metal1 -constraint oaMinRectArea -AreaValue 0.08
