minCenterLineClearance

Specifies the required clearance between the centerline of a shape on one layer and a shape on a second layer.

minCenterLineClearance Quick Reference

Constraint Type	Layer pair (non-symmetric)
Value Types	Value
Database Types	Design, Technology
Scope	design, foundry
Category	Clearance

Value Type

Value

Specifies the minimum required clearance in user units.

Examples

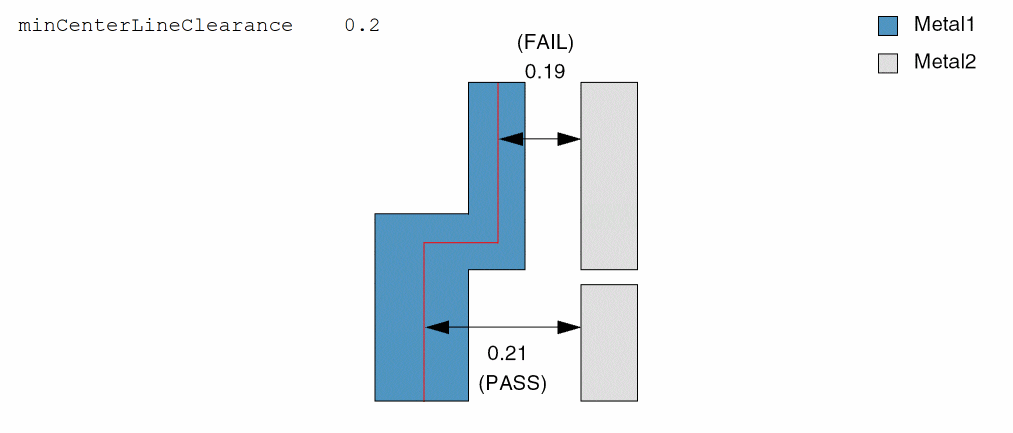

Specifies that the clearance between the Metal2 shape and the centerline (in red) of the Metal1 shape must be greater than or equal to 0.2 user units.

set_layerpair_constraint -constraint minCenterLineClearance \
  -layer1 Metal1 -layer2 Metal2 -Value 0.2
