minimumLength

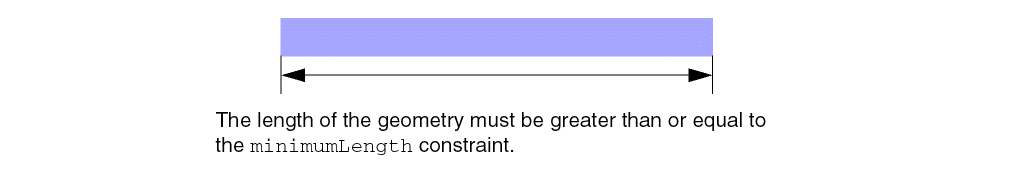

Specifies the minimum orthogonal length for any geometry on a layer.

minimumLength Quick Reference

Constraint Type	Layer
Value Types	Value
Database Types	Design, Technology
Scope	design, foundry
Category	Length and Width

Value Type

minimumLength constraints have a Value that represents the minimum orthogonal length for any shape on the layer.

Examples

This example sets the minimum orthogonal length for shapes on Metal2 to 0.6 user units.

set_layer_constraint -constraint minimumLength -layer Metal2 -Value 0.6
