useExistingShapesAsShield

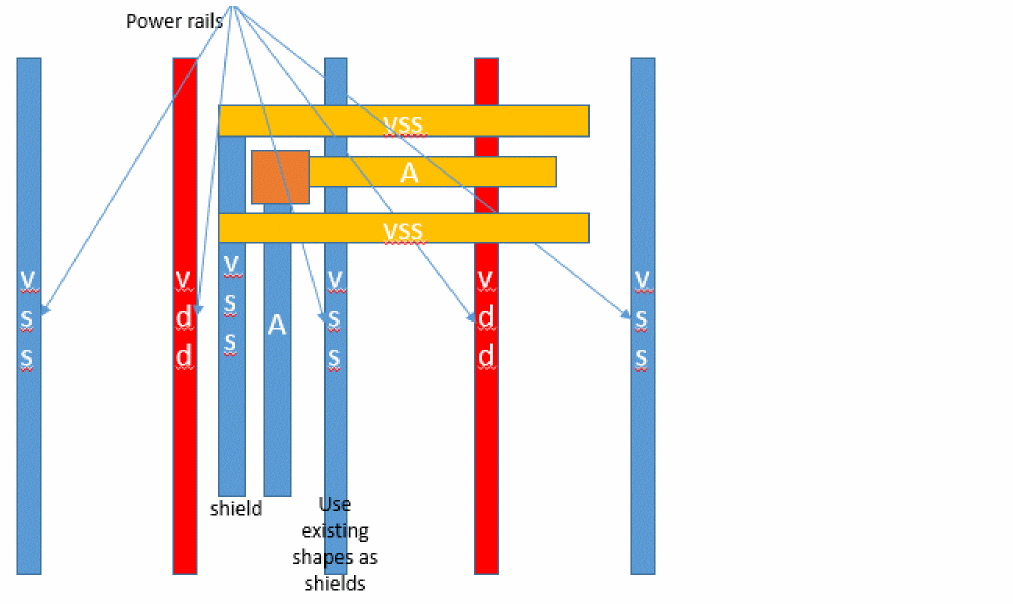

Controls whether existing shapes can be used as shields and attract the shielded net to existing shields. This constraint is applied to existing shielded nets.

useExisitingShapesAsShield Quick Reference

Constraint Type	Simple
Value Types	BoolValue
Database Types	Design, Technology
Scope	design, foundry
Category	Miscellaneous

Value Type

BoolValue

When set to true, the constraint is enabled.

Examples

Specifies the useExistingShapesAsShield constraint to the existing CG__9 shield constraint group.

set_constraint -constraint useExistingShapesAsShield -group CG__9 -BoolValue true
