msMinLengthPatternPitch

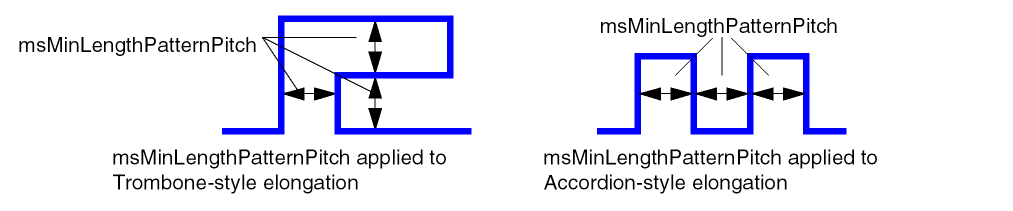

Specifies the minimum same net spacing for elongation patterns. If this constraint is not specified, minSameNetSpacing is used for elongation patterns.

msMinLengthPatternPitch Quick Reference

Constraint Type

Layer

Value Types

Value

Database Types

Design, Technology

Scope

design, foundry

Category

Mixed Signal Routing

Value Type

Value

Specifies the minimum spacing in user units.

Examples

This example sets the minimum same net spacing for elongation patterns on Metal1 to 0.4.

set_layer_constraint -constraint msMinLengthPatternPitch -layer Metal1 -Value 0.4

Related Topics

Mixed-Signal Routing Constraints
