minCenterToCenterSpacing

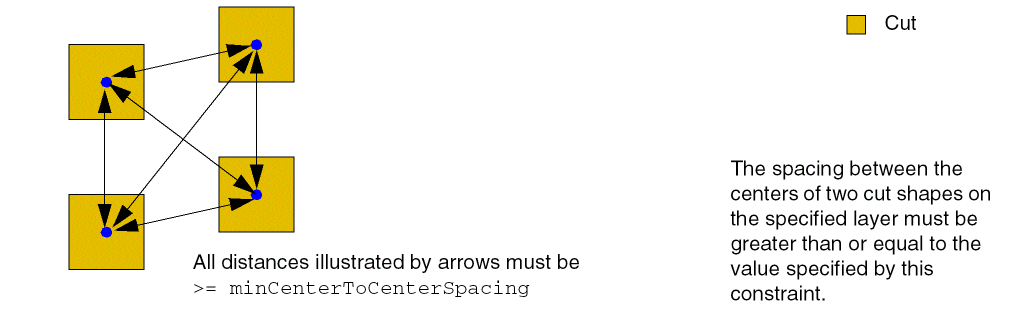

Sets the minimum spacing, center-to-center, between shapes on a single cut layer. This constraint is used to specify the spacing between adjacent vias. An alternate way to specify spacing constraints for adjacent vias is using minAdjacentViaSpacing.

minCenterToCenterSpacing Quick Reference

Constraint Type	Layer (cut layers only)
Value Types	Value
Database Types	Design, Technology
Scope	design, foundry
Category	Spacing

Value Type

Value

Specifies the minimum distance required between the vias, in user units. The distance is measured from the center of the first cut shape to the center of the second cut shape.

Examples

Sets the minimum center-to-center spacing on VIA2 to 0.3.

set_layer_constraint -constraint minCenterToCenterSpacing -layer VIA2 -Value 0.3
