minEnclosedSpacing

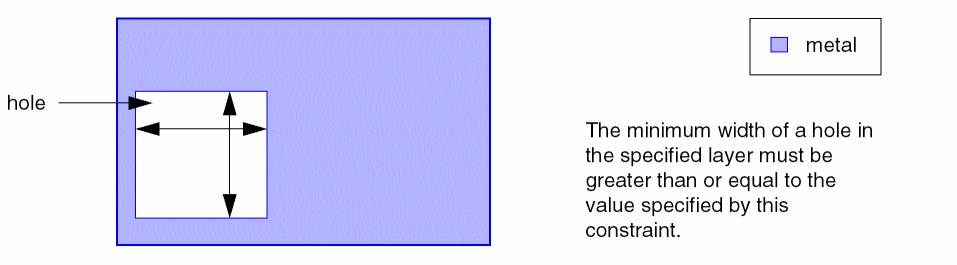

Defines the minimum distance, parallel edge-to-edge, across a hole in the specified layer.

minEnclosedSpacing Quick Reference

Constraint Type	Layer
Value Types	Value, OneDTblValue
Database Types	Design, Technology
Scope	design, foundry
Category	Spacing

Value Types

• Value
  Specifies the minimum width, parallel edge-to-edge, in the X and Y directions for a hole on the layer.


• OneDTblValue

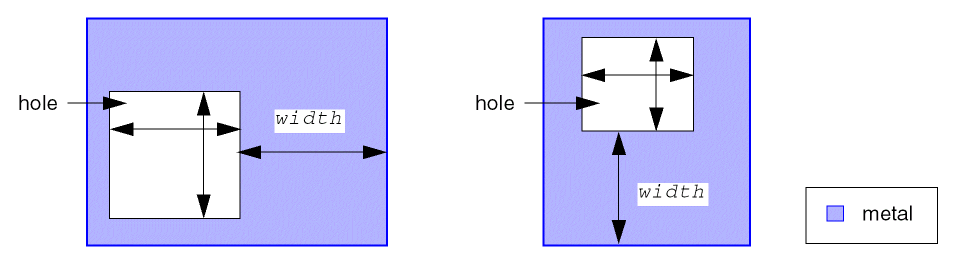

  Specifies the minimum width, parallel edge-to-edge, in the X and Y directions for a hole on the layer, based on the width of the enclosing metal. The lookup key (width) for the table is the largest effective width of the enclosing metal, measured from the edge of the hole. The table value is the minimum width for the hole.
