shapeRequiredBetweenSpacing
Specifies the minimum spacing between shapes on layer1 that do not require a shape on layer2 between them. Optionally, this constraint depends on the direction of the spacing between the layer1 shapes, either horizontally or vertically.
shapeRequiredBetweenSpacing Quick Reference
Value Type
|
Specifies the distance, in user units, between layer1 shapes. layer1 shapes closer than this distance must have a layer2 shape between them. |
Optional Parameter
|
Specifies the measurement direction for the layer1 distance.
Type: |
Examples

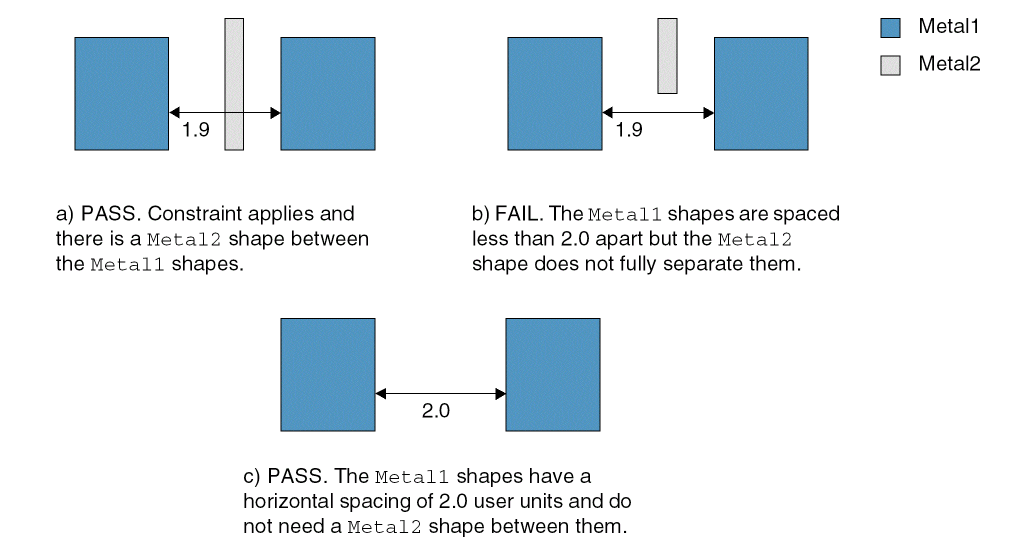

Specifies that Metal1 shapes that are closer than 2.0 user units, when measured in the horizontal direction, must have a Metal2 shape between them.
set_constraint_parameter -name oaSpacingDirection -IntValue 1
set_layerpair_constraint -constraint shapeRequiredBetweenSpacing \
-layer1 Metal1 -layer2 Metal2 -Value 2.0
