minLargeViaArrayCutSpacing

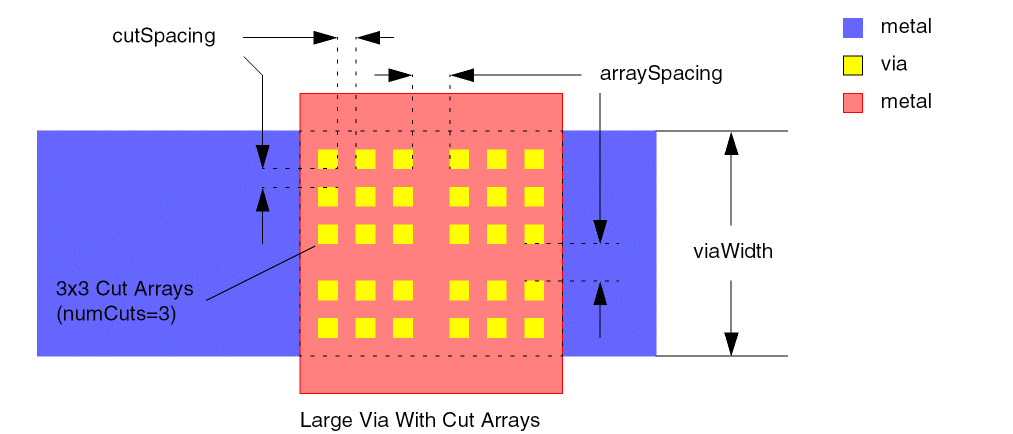

Specifies the minimum distance, edge-to-nearest-edge between cuts in a large via array. This constraint is associated with a cut layer and only applies within via arrays that satisfy the specified minimum and maximum requirement for via cuts.

minLargeViaArrayCutSpacing Quick Reference

Value Type

minLargeViaArrayCutSpacing constraint has a Value that represents the cut-to-cut spacing, in user units, within large via arrays that satisfy the specified minimum and maximum requirement for via cuts.

set_constraint_parameter -name minNumCuts -IntValue i_numCuts
set_layer_constraint -constraint minLargeViaArrayCutSpacing \
 -layer s_layer -Value f_spacing

Parameters

• maxNumCuts (IntValue) specifies that the constraint applies only if the number of rows and columns in the via cut array is less than or equal to this value.
• minNumCuts (IntValue) specifies that the constraint applies only if the number of rows and columns in the via cut array is greater than or equal to this value.
