oaMinParallelViaClearance

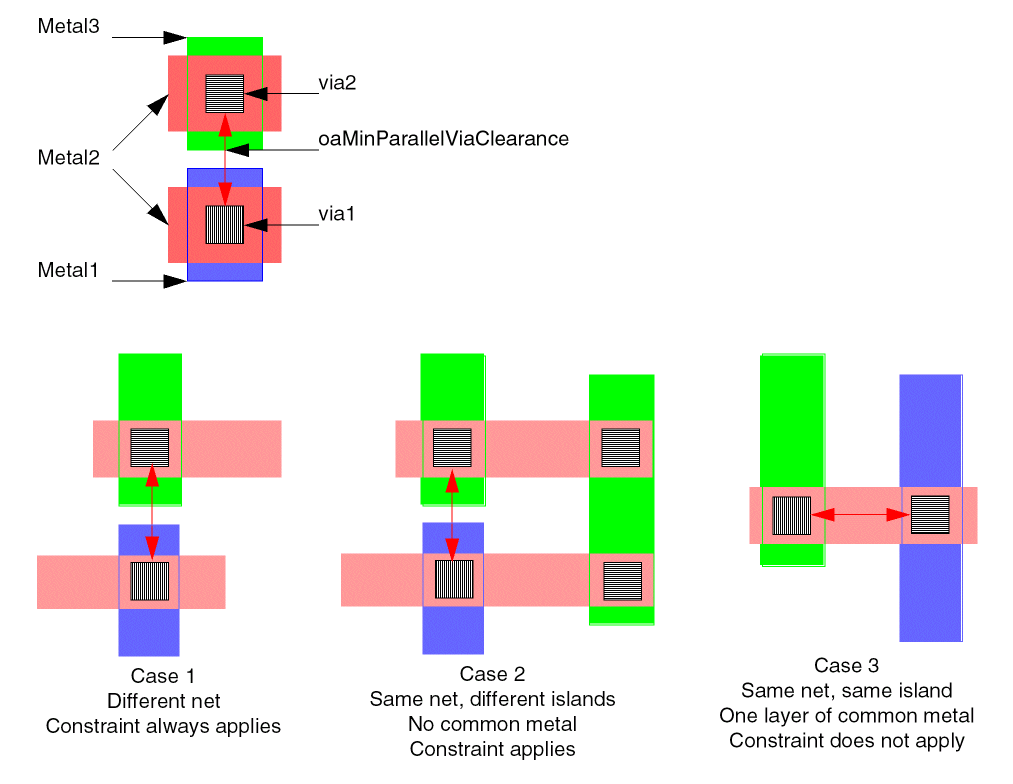

Specifies the clearance between cut shapes on one layer with respect to cut shapes on an adjacent layer that have parallel edges with an overlap greater than 0. This constraint applies only when the cuts do not share the same metal shaped on the layer between them.
oaMinParallelViaClearance Quick Reference
Value Type
oaMinParallelViaClearance constraints have a Value that represents the minimum required clearance, in user units, between the cut shapes.
